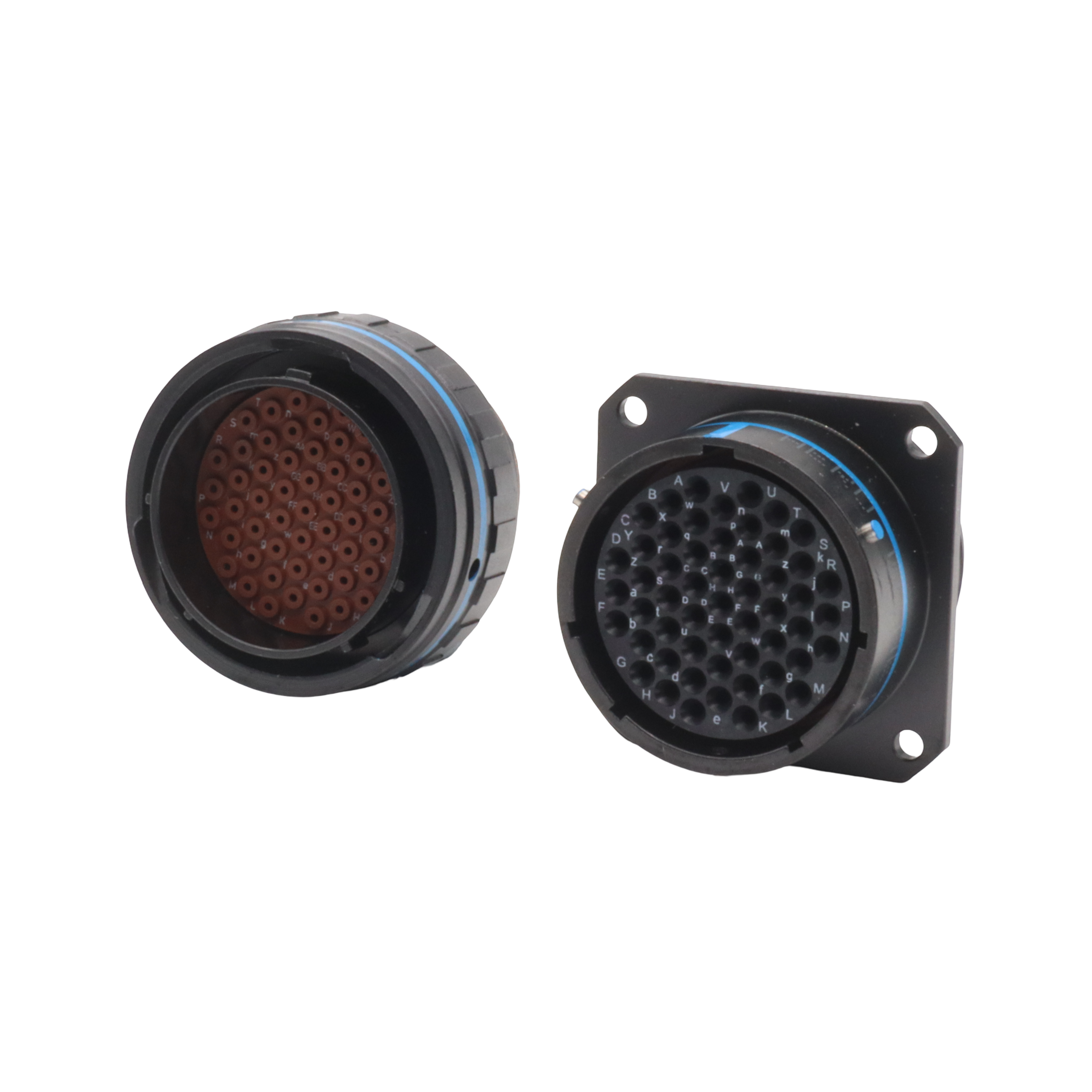

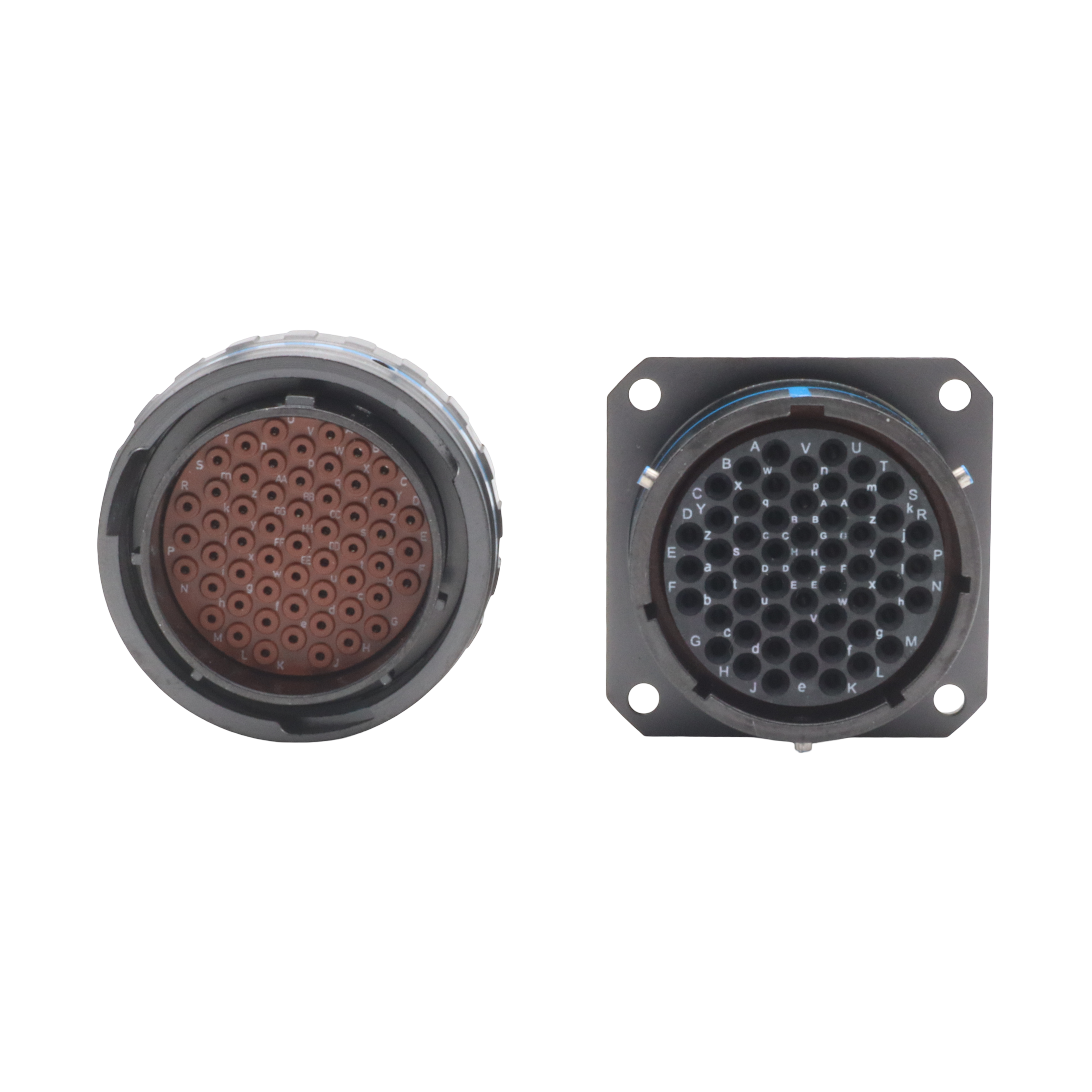

55 Way Mil-Spec connector kit.
Corrosion resistant black anodized aluminum housing.
55 x size 20 gold plated Mil-Spec contacts. Rated to 7.5 AMPs per circuit.

  • Manufactured to M39029/31-241 specification
  • IP67 rating
  • Rated to 500 disconnect re-connect cycles.
  • Operating temperature range : 55c - 200c
  • Unmated connectors resist to hydraulic fluid, lubricating
    oil), diesel, kerosene and glycol.

Connector kit includes

1x AE770Z22-55S  flanged receptacle

1x AE776Z22-55P plug

55x M39029/4-110 gold plated size 20 male contacts

55 x M390029/5-115 gold plated size 20 female contacts

16 x MS27488-20-2 cavity blanking plugs



Kit options

Connectors & 2 90 Degree Heat Shrink Boots

  • Connector kit
  • 2x M85049/60-2G22A backshells
  • 2x 222K1630-25-0 90 degree Raychem heat shrink boots

Connectors 1 90 Degree & 1 Straight Heat Shrink Boot

  • Connector kit
  • 2x M85049/60-2G22A backshells
  • 1x 222K1630-25-0 90 degree Raychem heat shrink boot
  • 1x 202K1630-25-0 straight Raychem heat shrink boot

Connectors & 2 Straight Boots

  • Connector kit
  • 2x M85049/60-2G22A backshells
  • 2x 202K1630-25-0 straight Raychem heat shrink boots



Contact arrangement





Tooling Requirements
