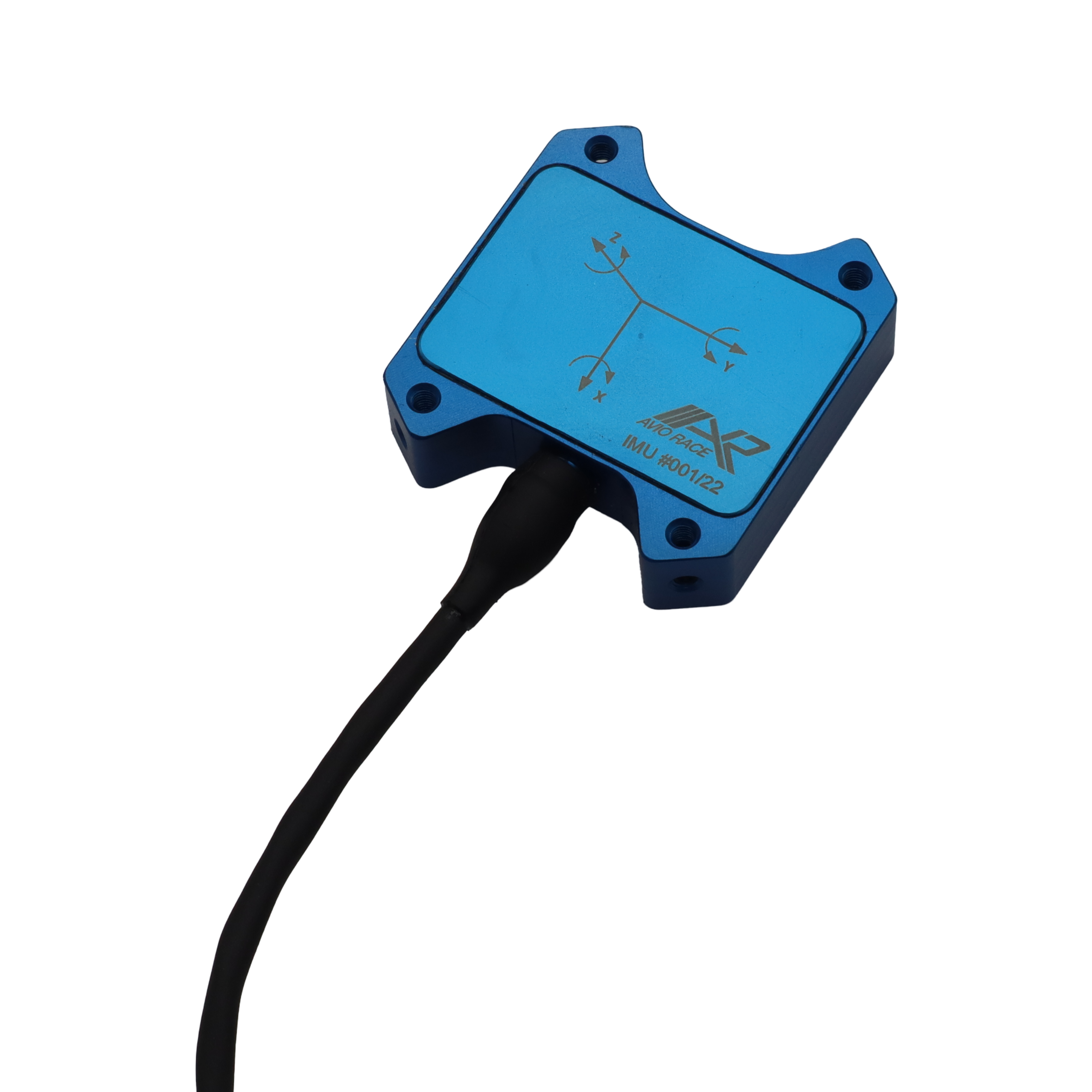

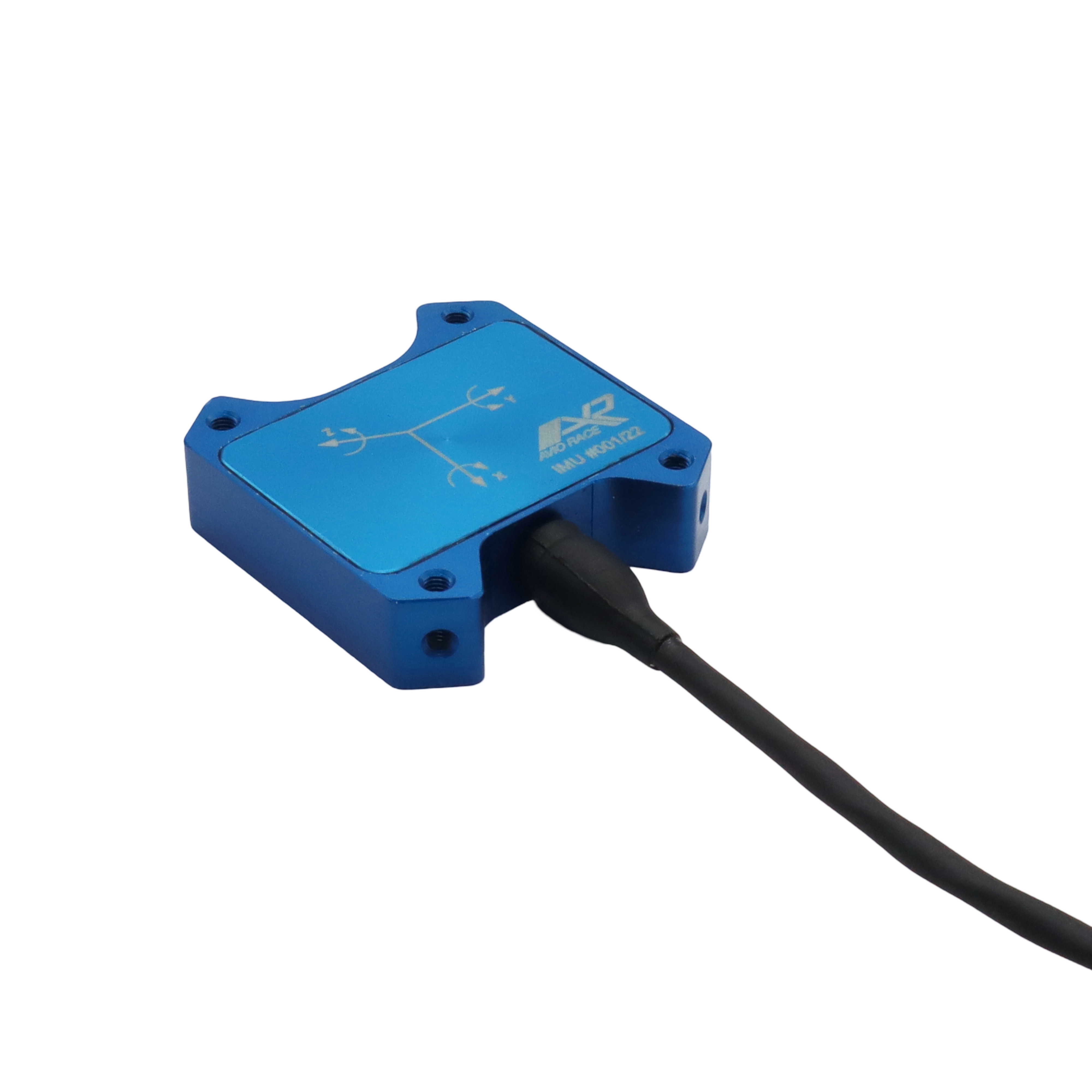

AVIORACE Inertial Measurement Unit

Inertial Measurement Unit or "IMU" outputs acceleration in X,Y,Z plan and angular rates.

The Aviorace IMU is faster than competitors products with 100hz refresh rate ensuring data is able to be logged and utilized by ECU and data loggers.

Adjustable via CAN for Baud rate, Accel range, Gyroscope.

Perfect for Lean Angle Measurement in Superbike applications.

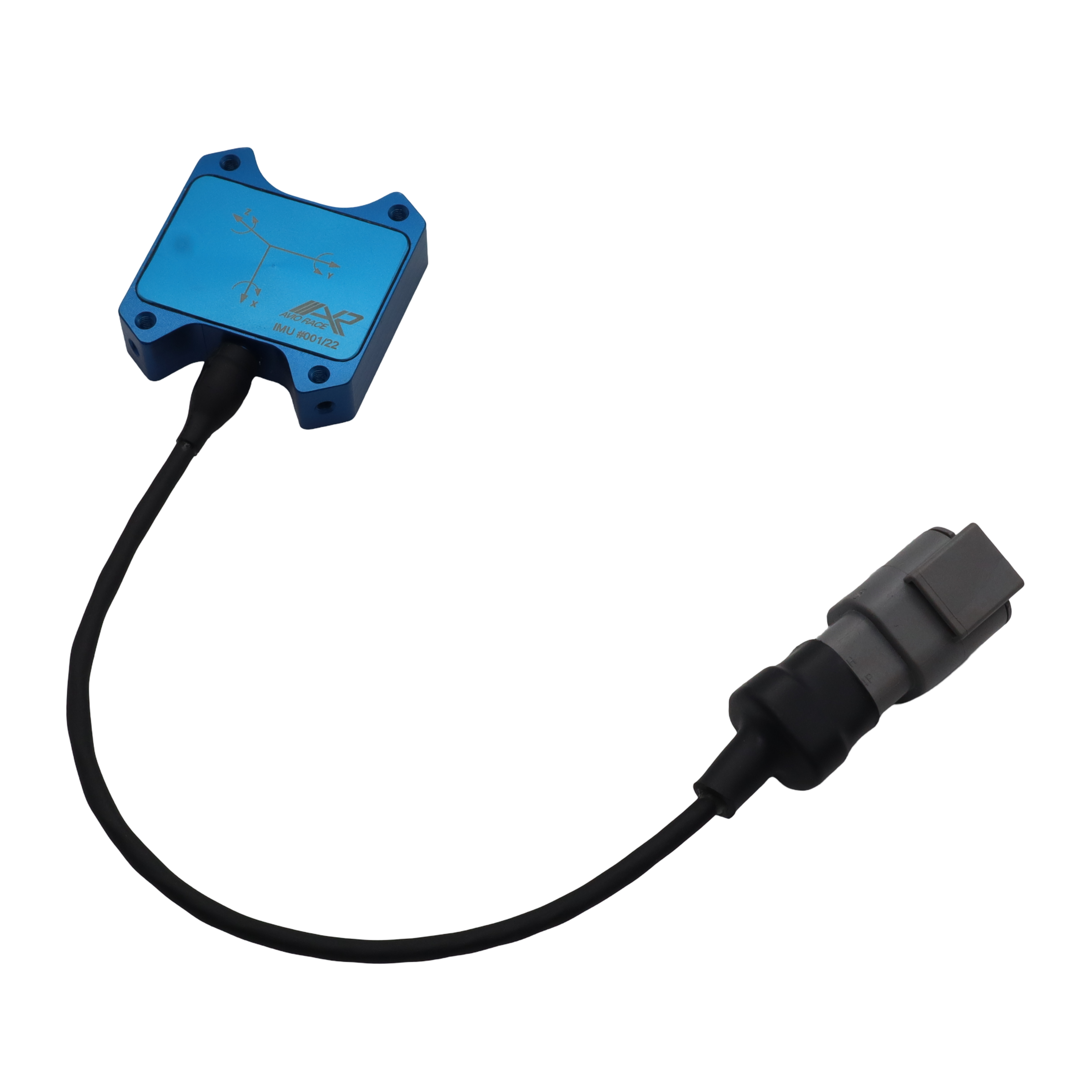

DTM04-4P Connector fitted as standard. Connector can be changed on request.

• Technical Specification:
   Power Supply: 8÷16 Vdc
  Current : 20mA @ 12V
  Working Temperature Range: 0÷105 °C
  Material: Anodized aluminum
  Protection: IP64
  Weight with wires: ≈ 58 g



• Setting Configuration
  Baud rate: 1 Mbps, 500 Kbits, 250 Kbits
  Accelerometer range: ±24G, ±12G, ±6G, ±3G
  Gyroscope  ±2000 °/s, ±1000 °/s, ±500 °/s, ±250 °/s, ±125 °/s
  Relative position on vehicle : set through a CAN message
