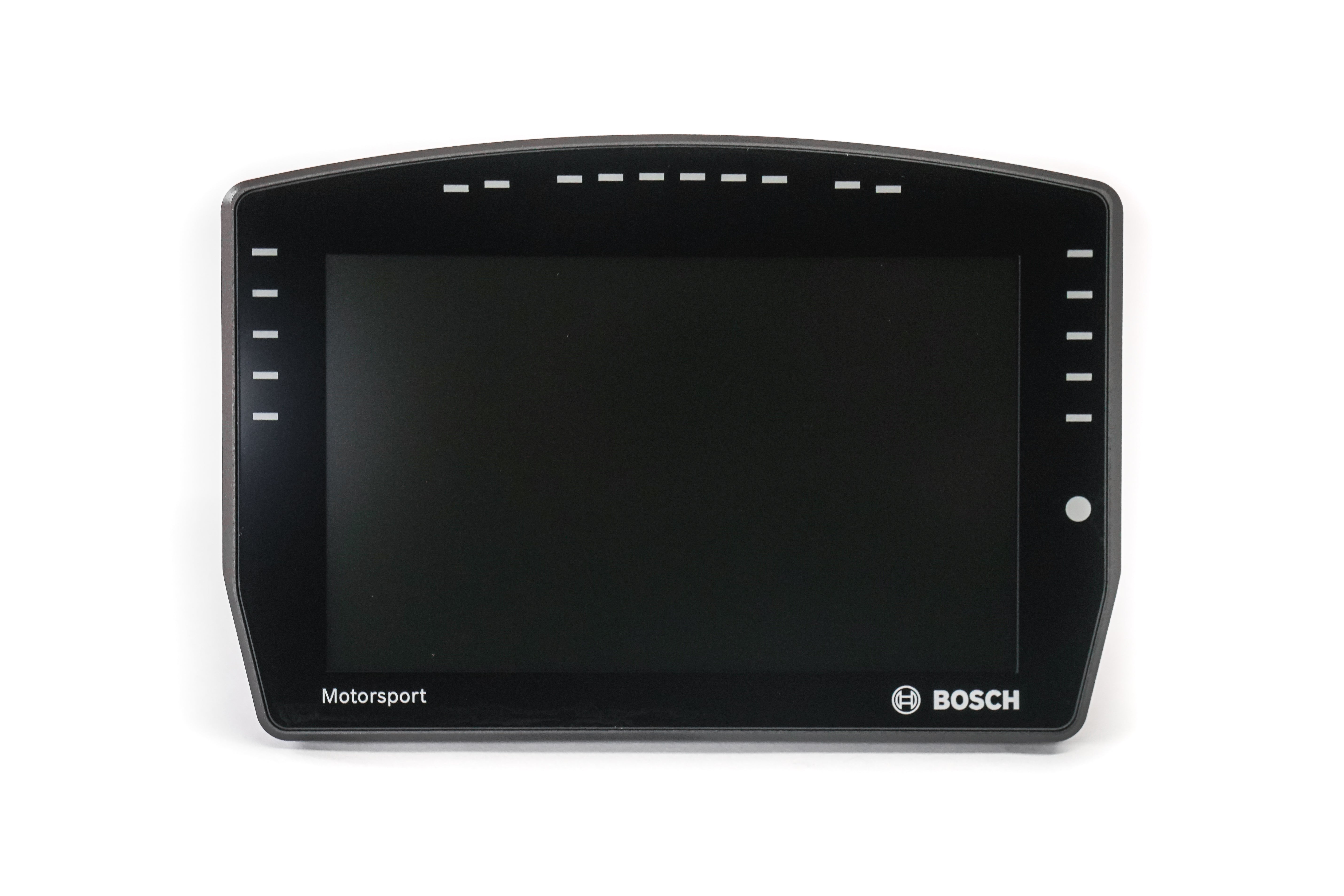

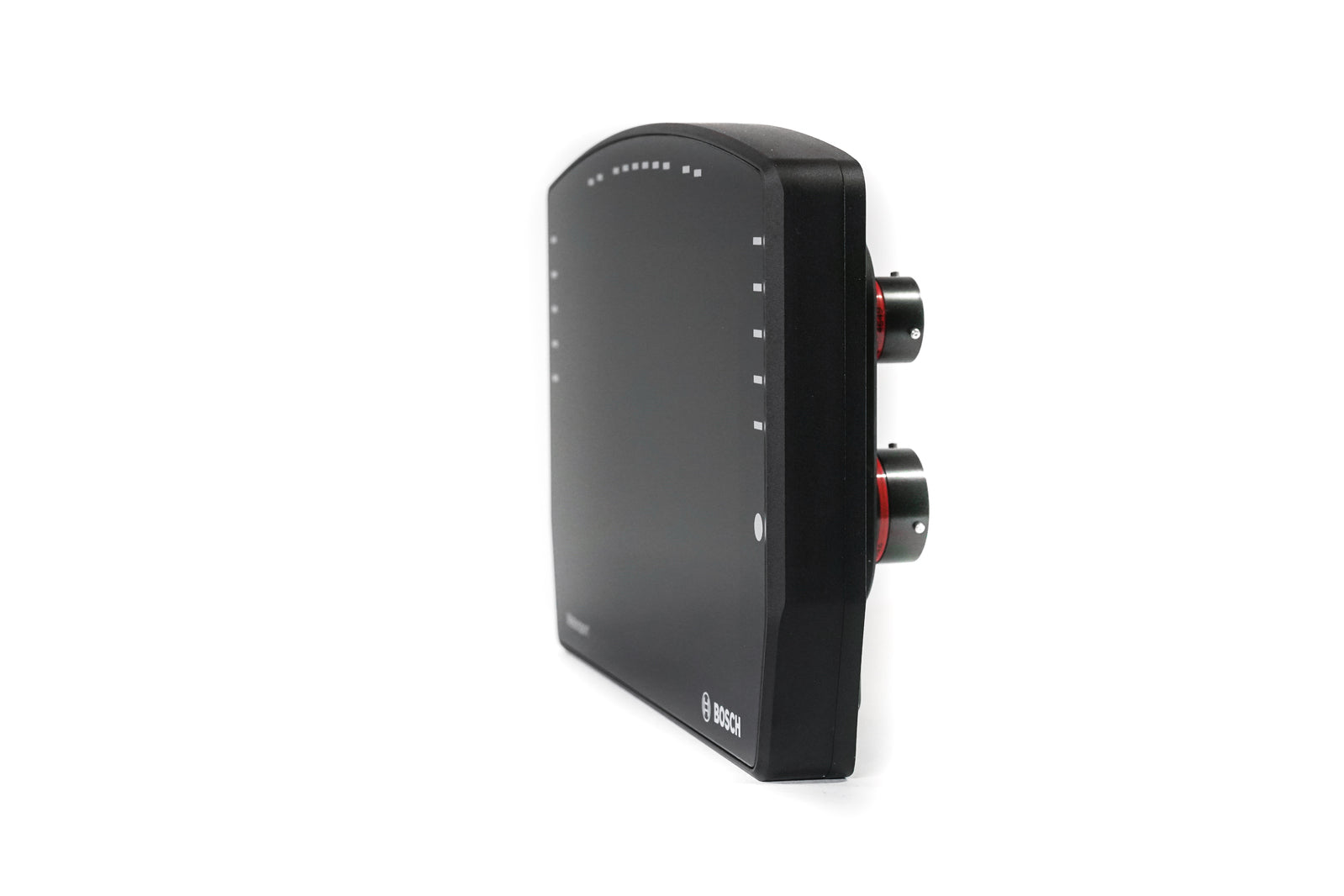

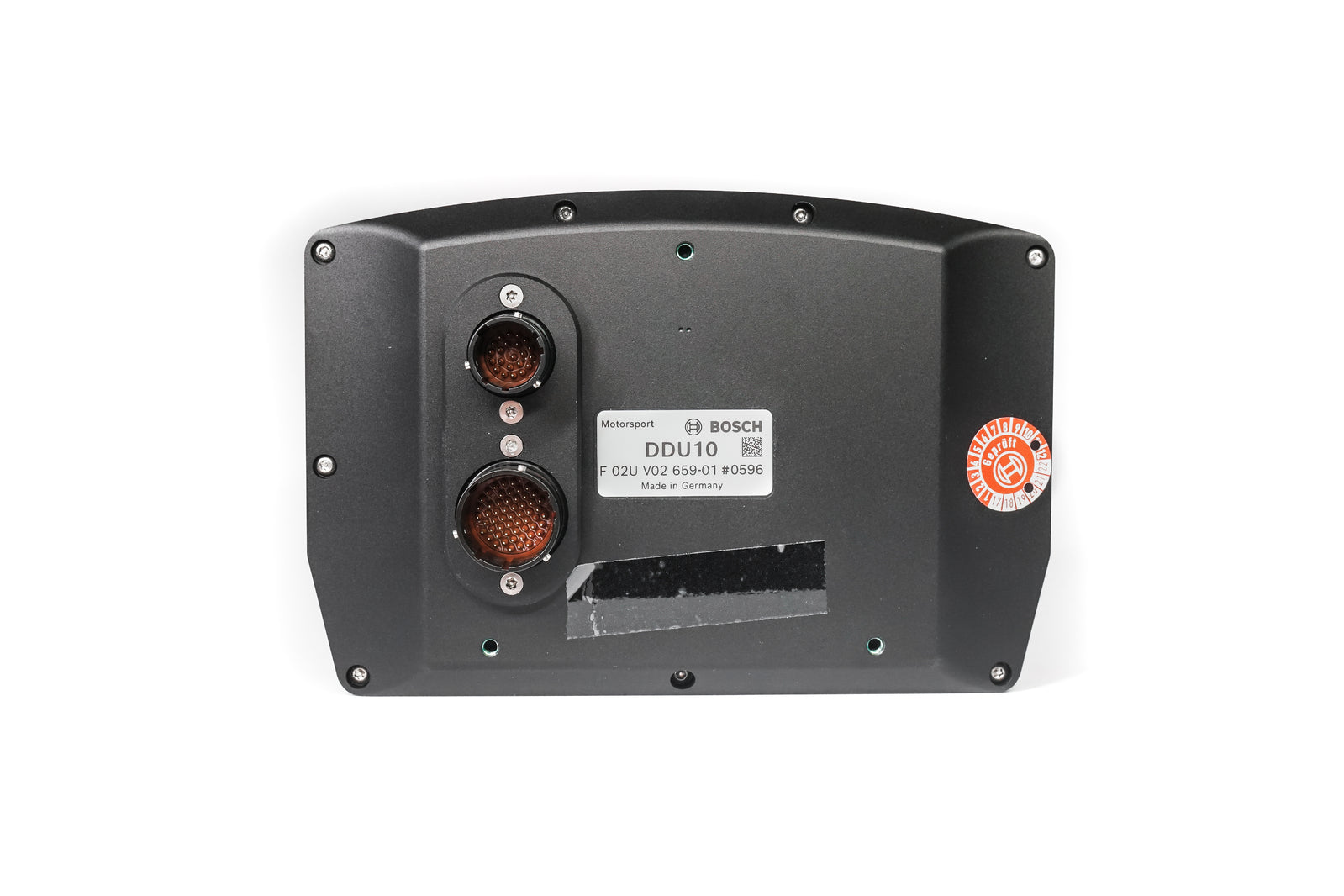

Bosch Motorsport DDU10 Digital Display

The Display DDU 10 integrates a programmable full colour dashboard display with a data logging system for motorsport applications. Additional input devices can be connected via Ethernet, CAN buses, and RS 232.

A basic logging function of 100 channels with recording of 50 ms (4 GB) is always included. The logger can be upgraded to full logging performance (max. 1 ms). In addition, a 2nd logging partition of 4 GB can be activated.

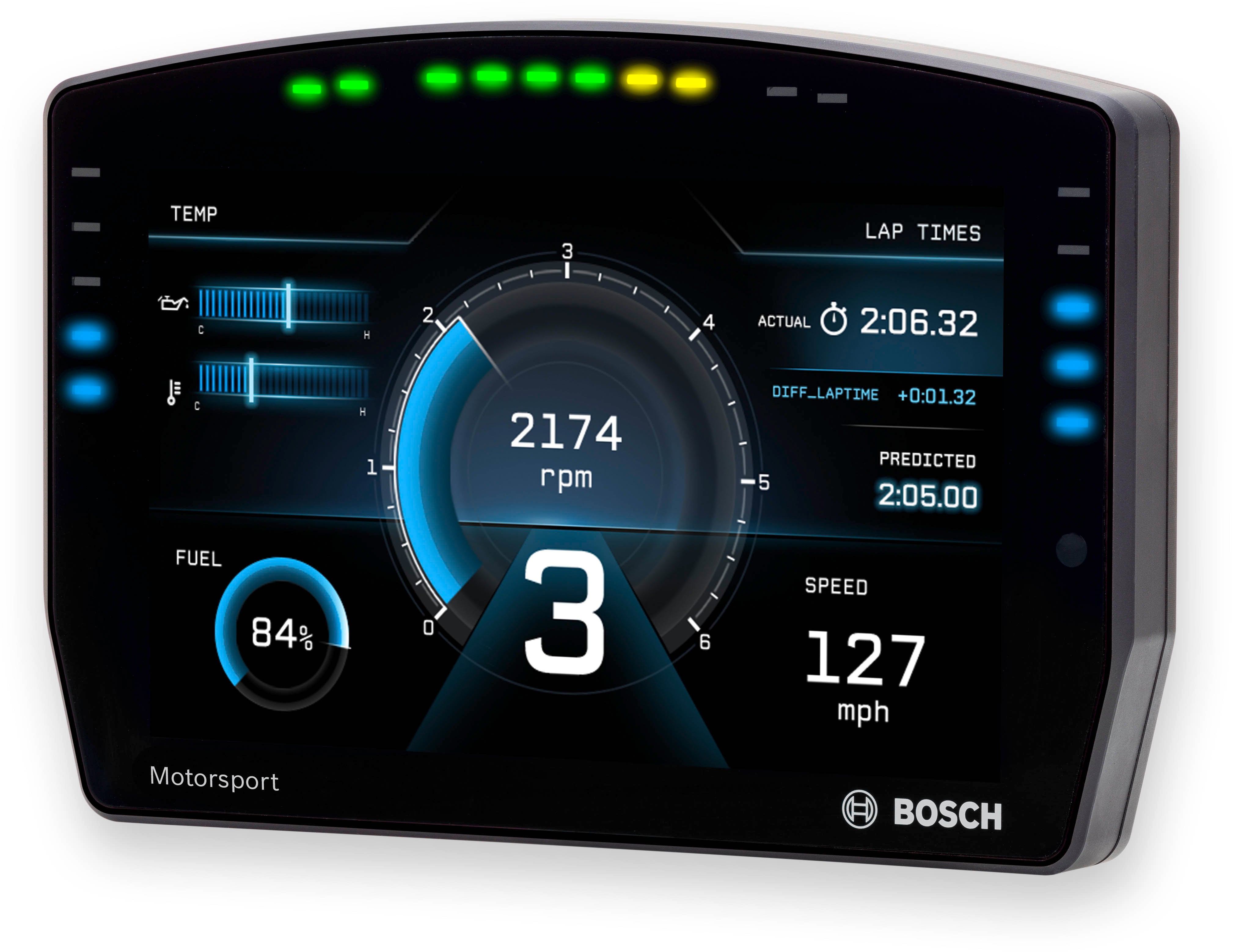

With the DDU 10, a completely new library of graphical elements for the individual design of display pages was implemented and an all-new user interface menu has been developed for the device. A configurable input activates the menu structure and the user can reset for example laptime, fuel consumption and many more, without having to connect a laptop to the DDU. The user can also install own graphics, pictures etc. on the 12 freely configurable display pages. For quick data transfer from the car, e.g. during pit stop, data copy to a USB stick is available as an option.

Display

• 7" graphic colour display
• 12 configurable display pages
• 12 multicolour freely configurable RBG LEDs

Internal Logger

•    4 GB memory
• 100 channels enabled
• 50ms (20Hz)  sampling rate
• Option 1kHz & 1,500 channels upgrade available
•  Additional 4GB memory upgrade available

Inputs

•  4x analogue channels, plus 12 options
• 0-5v input range
• 12 bit resolution
• Switchable pull up resistors for all analogue inputs
• 4x hall effect wheel speed inputs
• Additional 12 Analog and 2 CAN channels upgrade available
