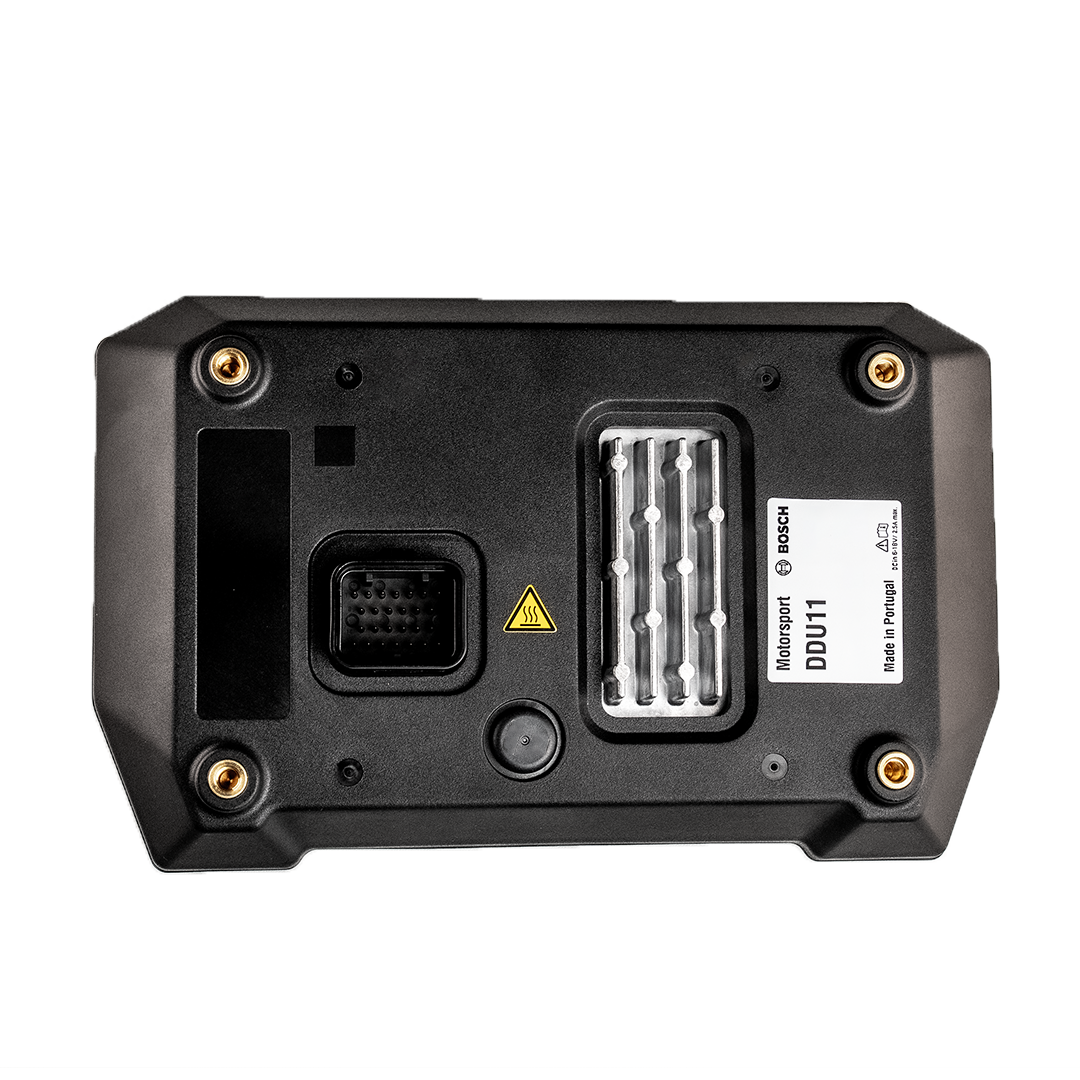

Bosch Motorsport DDU11 Digital Display

The display DDU 11 integrates a programmable full colour dashboard display with a data logging system for motorsport applications. Additional input devices can be connected via Ethernet, CAN buses, and RS 232.

A basic logging function of 100 channels with recording rate of 20 Hz (50 ms) (4 GB) is always included. The logger can be upgraded to full logging performance (max. 1 kHz (1 ms)). In addition, a 2nd logging partition of 4 GB can be activated. An optional external GPS Sensor keeps track of position on the racetrack.

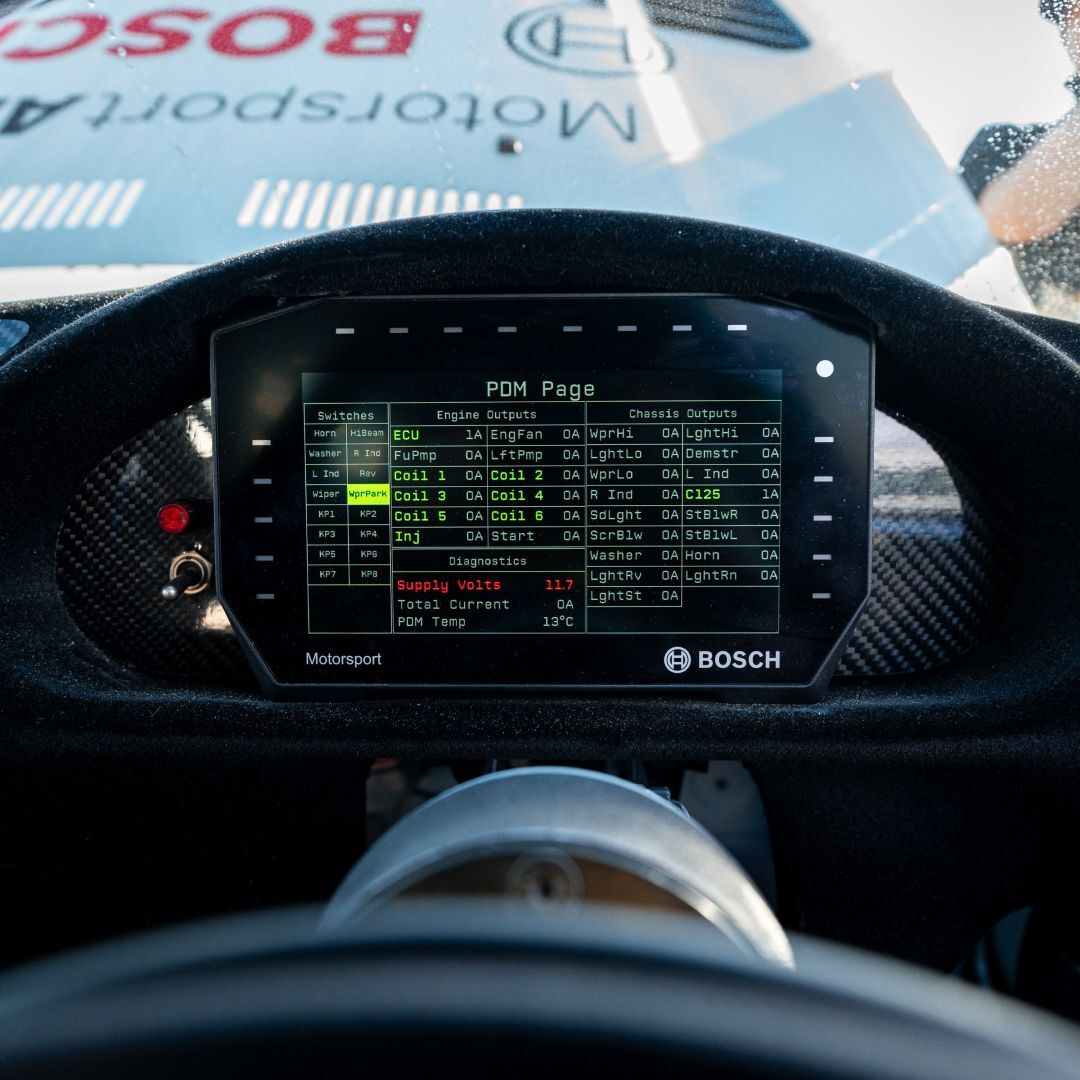

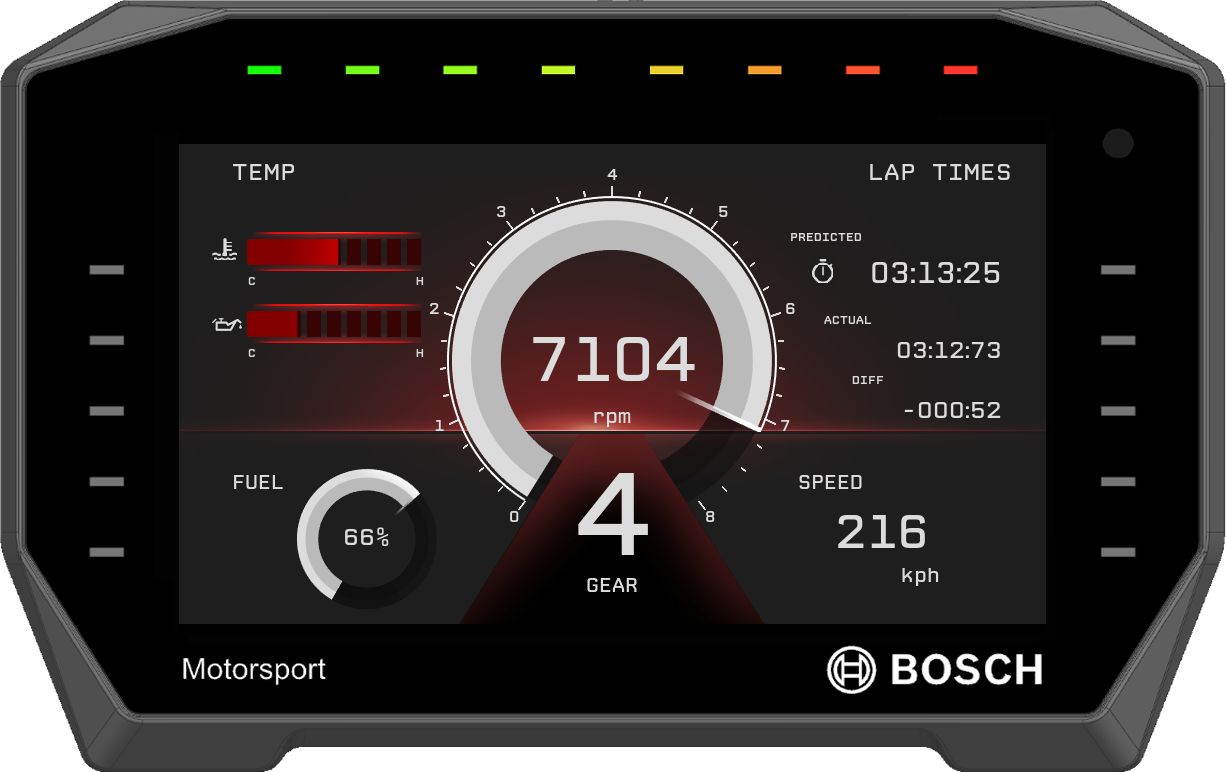

With the DDU 11, a library of graphical elements for the individual design of display pages and a state-of-the-art user interface menu is available. For quick data transfer from the car, e.g., during pit stop, data logging to a USB stick is available as an option.

Display

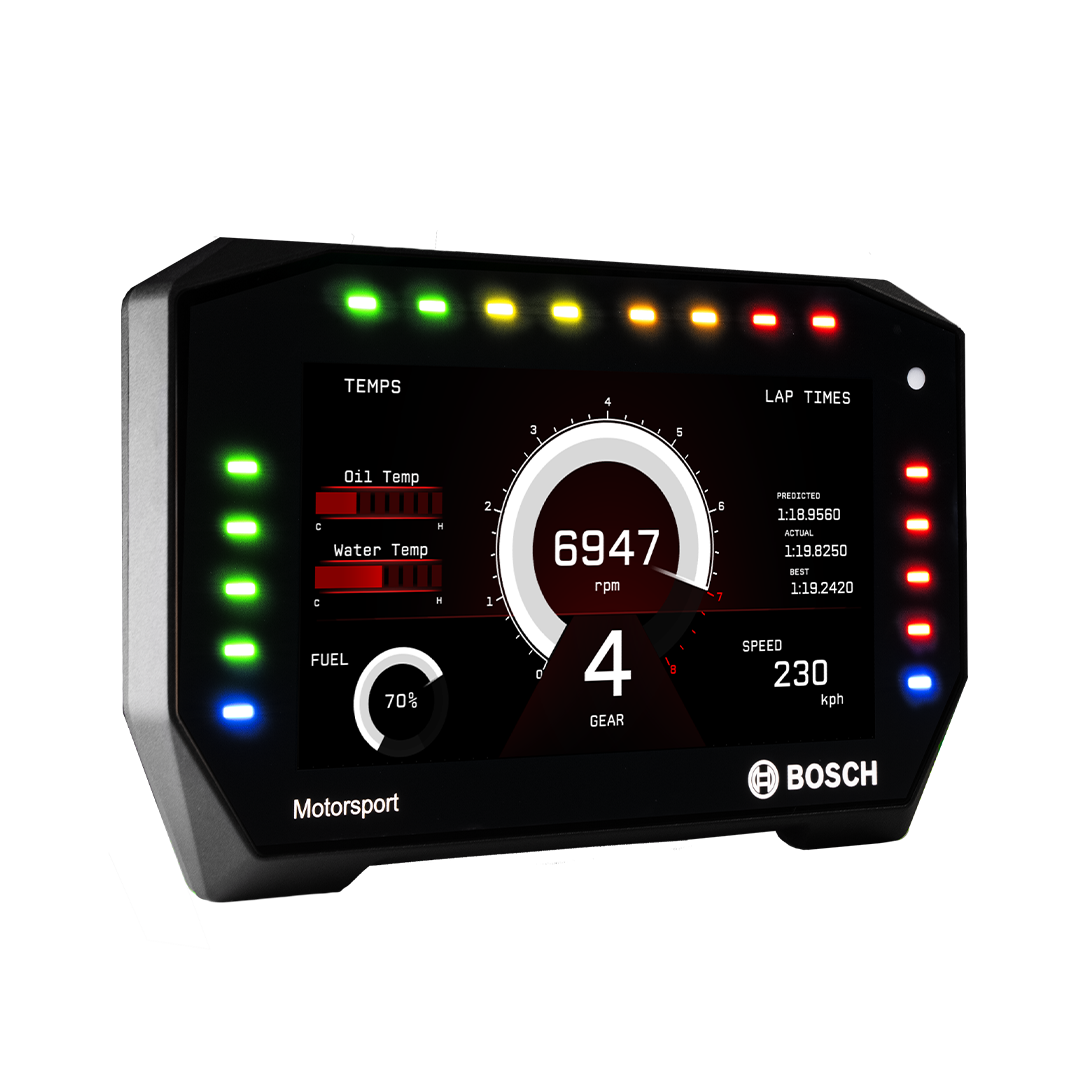

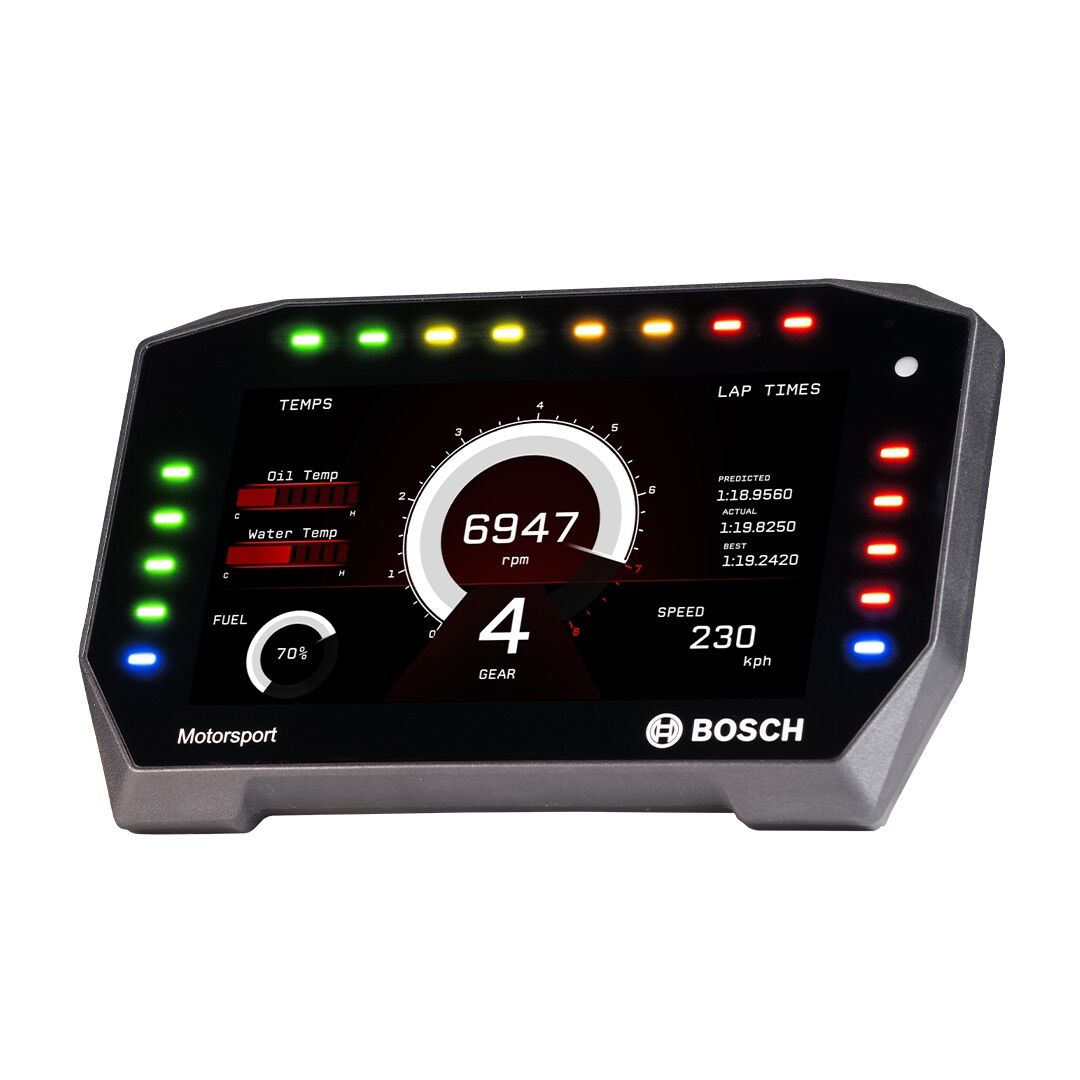

• 6.5" graphic colour display
• 48 configurable display pages
• 8 top-LED's and 5 side LED's on both sides

Internal Logger

•    4 GB memory
• 100 channels enabled
• 50ms (20Hz)  sampling rate
• Option 1kHz & 1,500 channels upgrade available
•  Additional 4GB memory upgrade available

Inputs

•  4x analogue channels, plus 12 options
• 0-5v input range
• 12 bit resolution
• Switchable pull up resistors for all analogue inputs
• 4x hall effect wheel speed inputs
• Additional 12 Analog and 2 CAN channels upgrade available

Data Sheet
