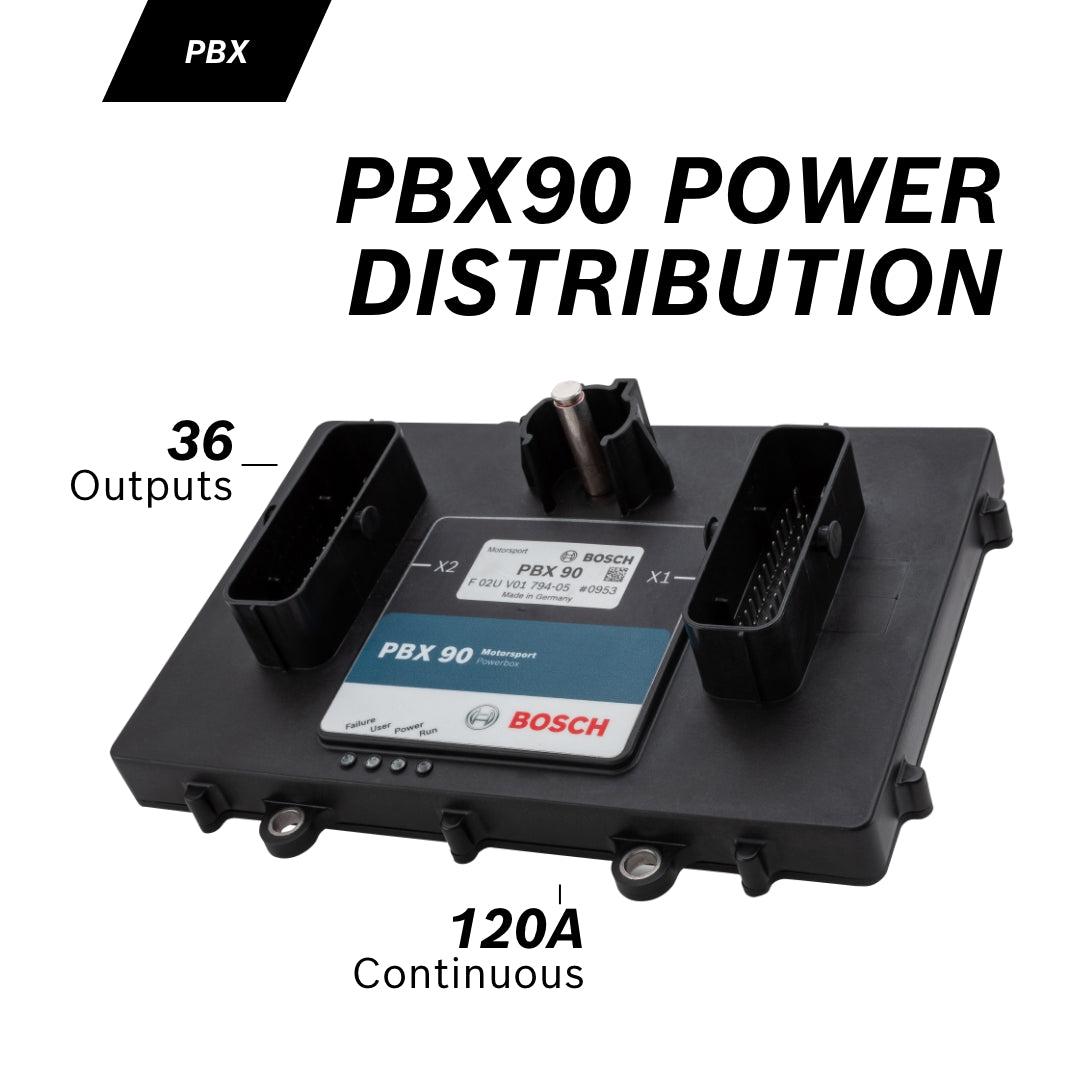

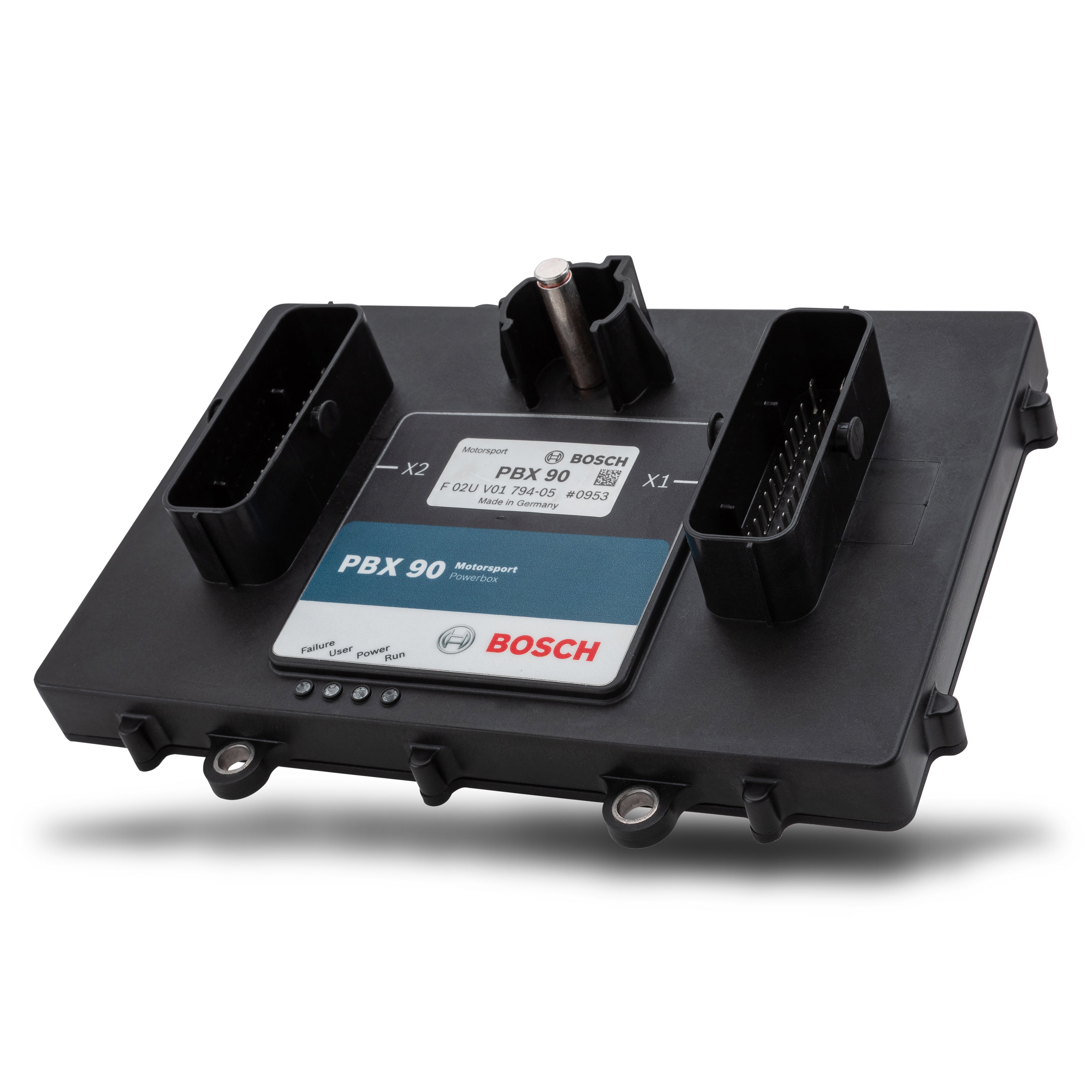

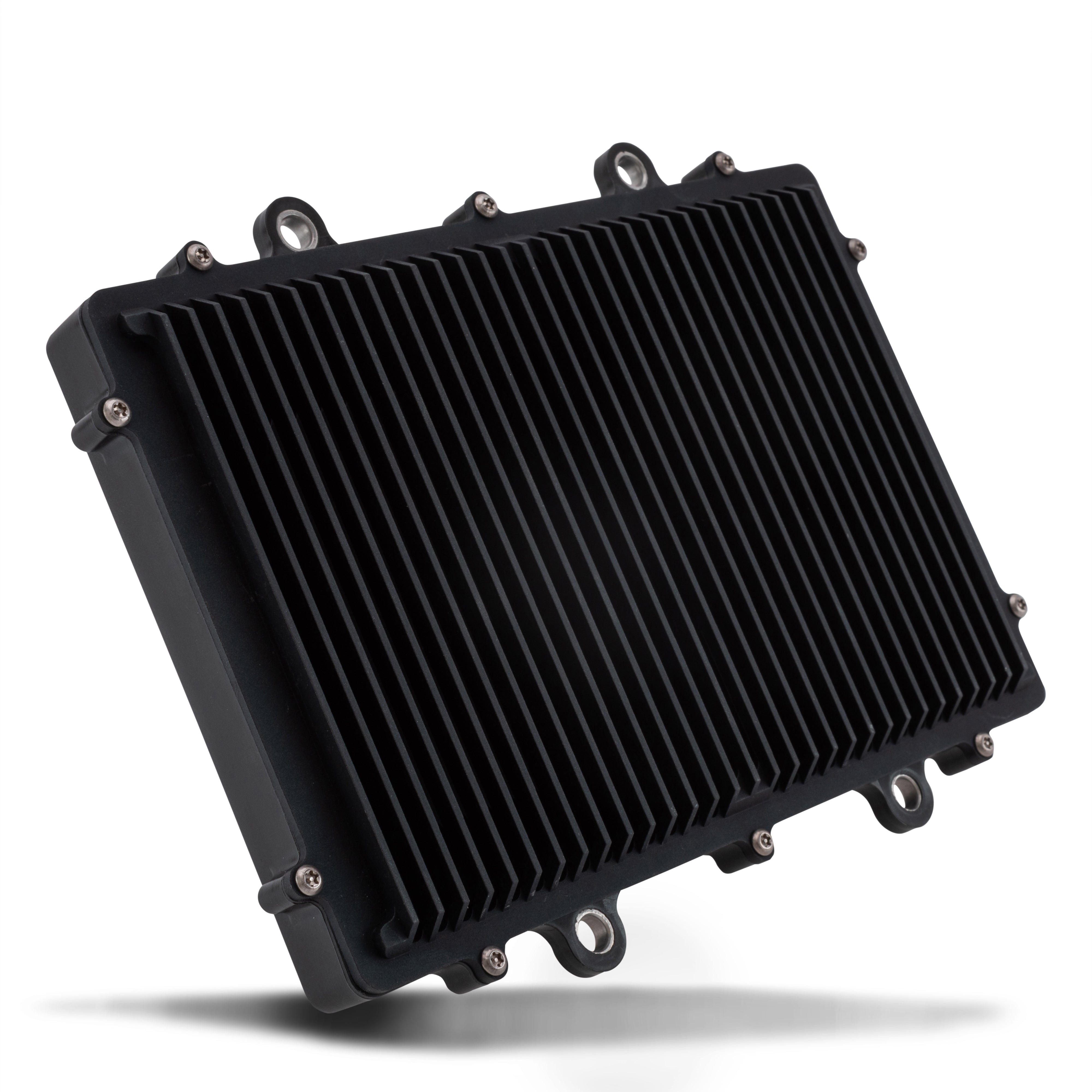

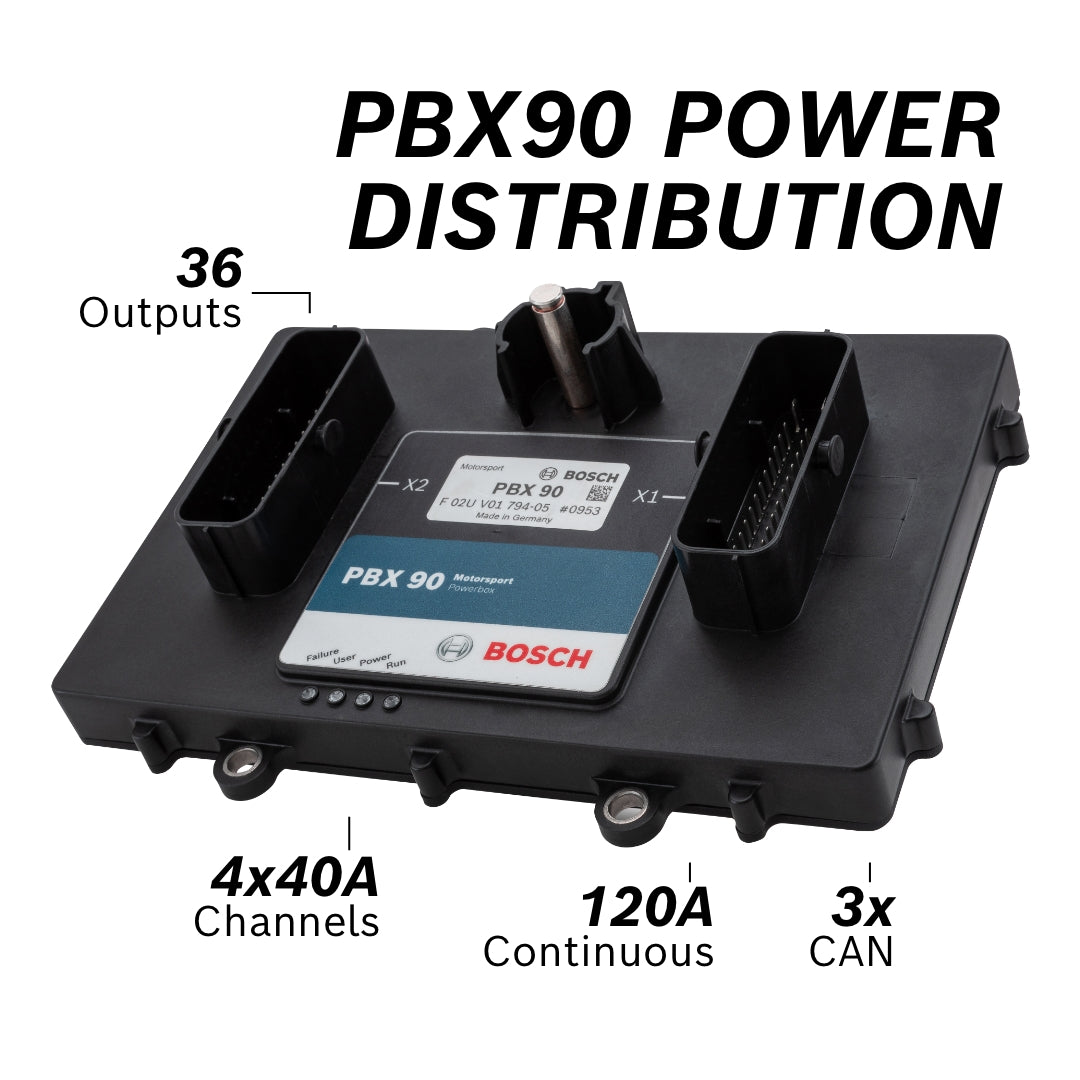

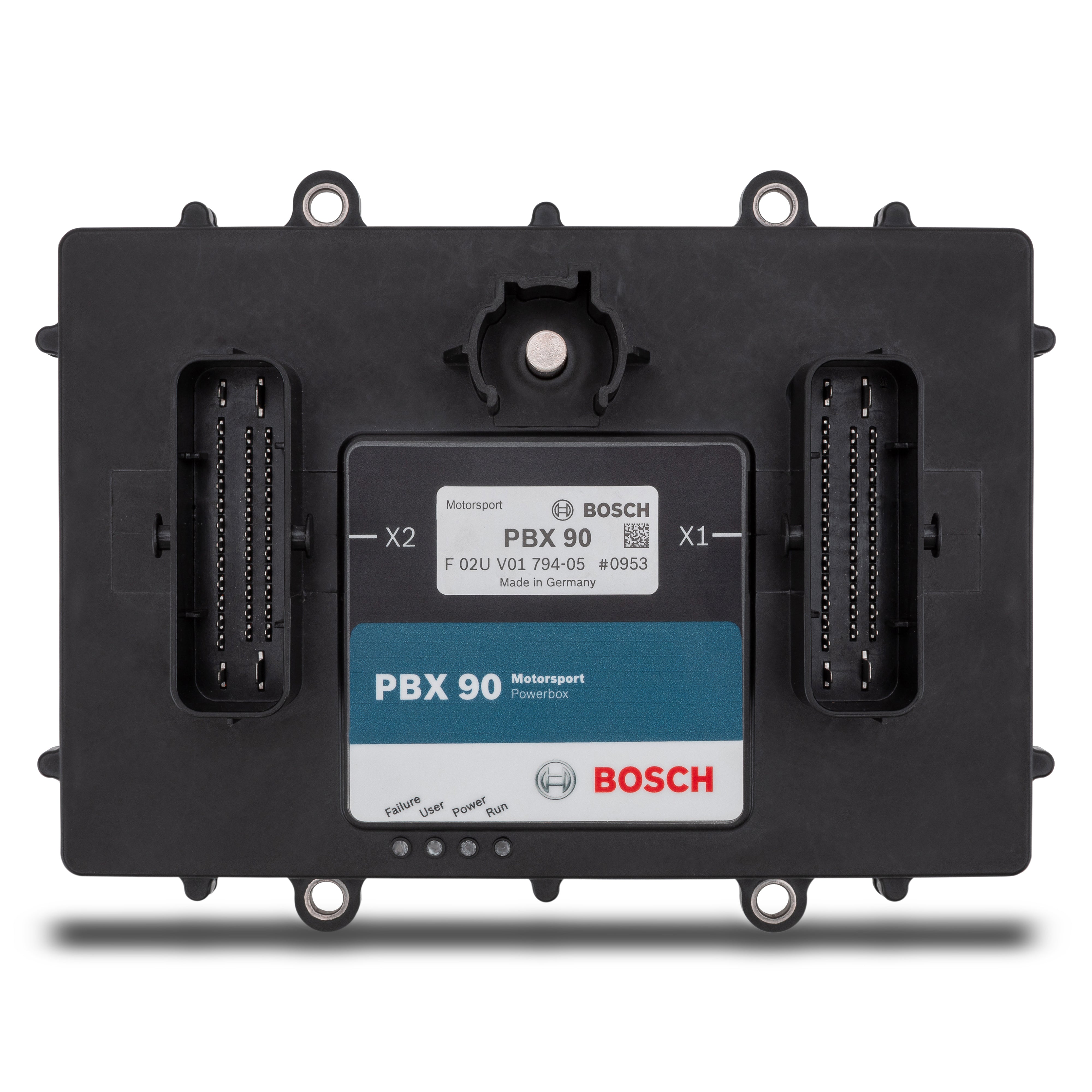

Bosch Motorsport Power Distribution Module - PBX90

The PowerBox is an intelligent control and distribution unit for the electric grid in a modern racing car, which is seamlessly integrated into the Bosch Motorsport system architecture. It is capable to replace all conventional relays, fuses and circuit breakers, simplifies wiring harnesses and provides diagnostic capabilities. The integrated PBX-software guarantees an easy programming of complex functions by intuitive handling.

• 120 A continuous current

• 180 A peak current ( less than 2 seconds)
• 36 outputs, 80 A high side switches
• Ethernet, CAN and LIN communication
• Software-tool integrated
• Easy programming of complex functions
• 3 CAN networks

Outputs

• 4x high power channels up to 40A (parallel up to 80A)
• 4x high power channels up to 25A
• 22 x high power channels up to 15A
• 6x multi purpose outputs up to 15A ( low side high side , push-pull, PWM ; two output stages can be combined to form a H-Bridge)

Inputs

• 12 x analogue inputs ( 16 bit resolution) switchable pull up resistors
• 4 x digital inputs switchable pullup- pull-down resistors
