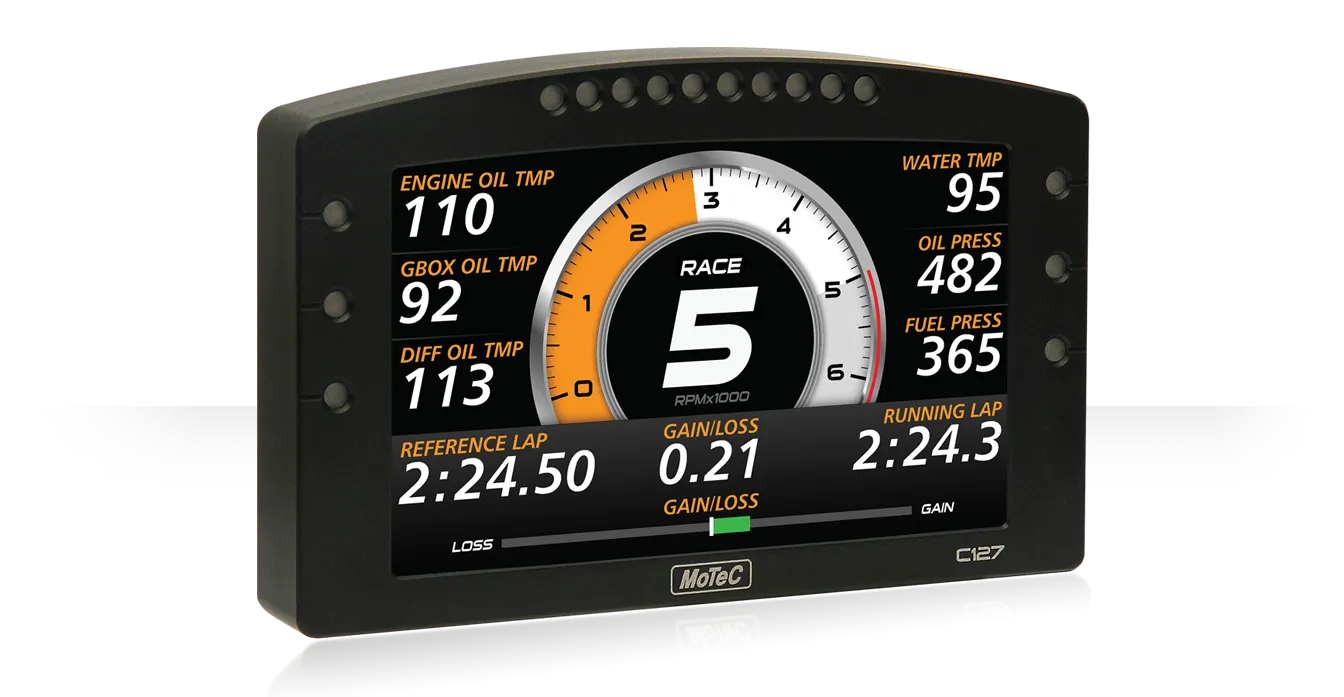

MoTeC C127 7 inch Colour Display Logger

The C127 comes standard as a combined 7" full colour display and powerful control device with outstanding readability in direct sunlight. With the addition of the Data Logging upgrade it becomes a fully programmable data logger with 120 MB memory. Optional USB Logging provides additional data capacity and flexibility.

Numerous supplied display layouts offer fixed graphics with configurable channels and labels, while the optional Display Creator software provides the tools for full screen customisation.

The C127 acquires data from other devices, such as an ECU, and can display data channels, warning alarms, lap times, fuel calculations, minimum corner speeds, maximum straight speeds and more.

Additional Upgrades

• Internal 120mb data logging
  I2Data Analysis software included, 500 samples per second.


• Additional Input and output
  ▪  6 x Analogue voltage inputs
  – 4 x 0 to 5.46 V
     – 2 x 0 to 15.0 V,
  ▪ 2 Analogue temperature inputs
      – 2 x 0 to 15.0 V
  ▪ 4 x low side outputs PWM or switched operation



• Display Creator
  allows for full customisation of the screen layout, including live video.
