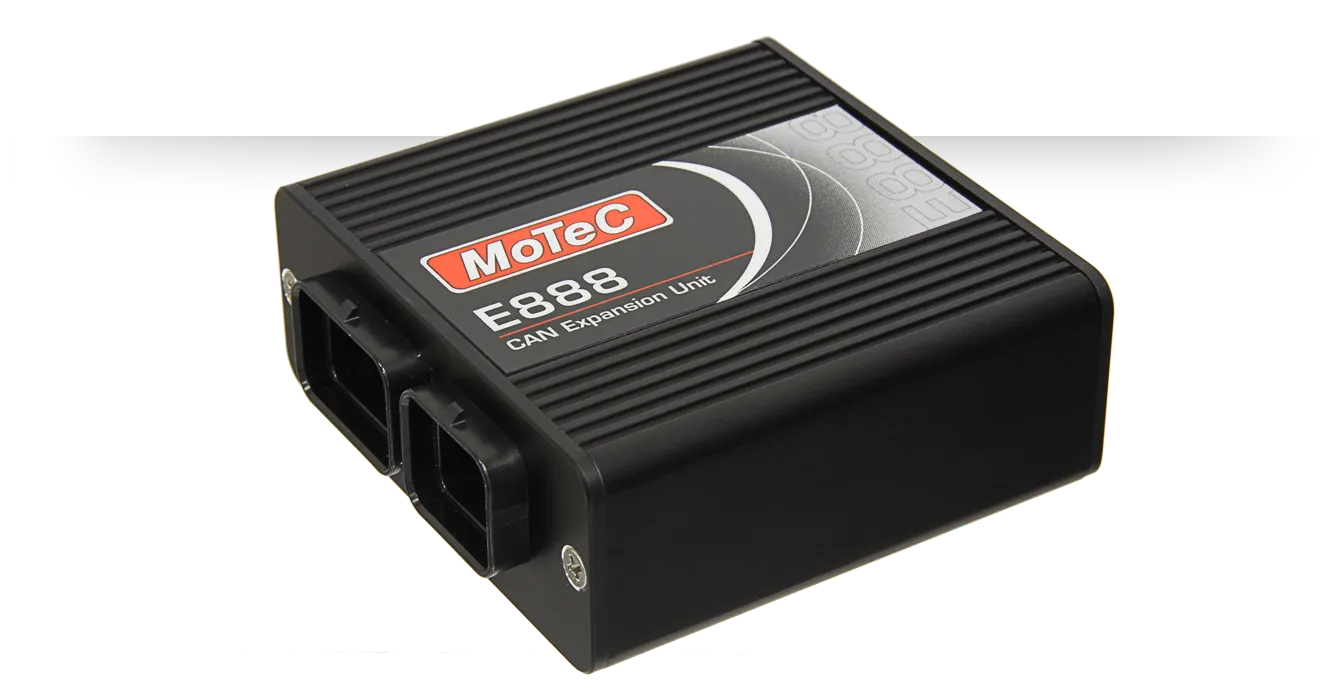

MoTeC E888 I/O Expander

The E888 Expander module is designed to increase the I/O (input/output) capacity of MoTeC products.

With CAN connectivity and a number of configurable inputs and outputs, they provide customers with greater flexibility to add sensors, customise channels and control more auxiliary functions.

The E888 expander inputs have medium resolution and update rate, where higher update rates or resolution are required consider using the VIM input expander.

Inputs

• 8 x analogue voltage inputs, 10 bit (4.9 mV) resolution 0 to 5 V, suitable for potentiometers, voltage output sensors and variable resistance (temperature) sensors
• 8 x thermocouple inputs, 1 °C resolution suits K type thermocouples (-200 to 1250 °C)
• 2 x cold junction compensation thermistor inputs
• 4 x digital inputs with frequency measurement and switched capability
• 2 x switch inputs
• Update rate for all inputs 200 Hz, for a second expander 50 Hz

Outputs

• 8 x PWM outputs (individually controllable for frequency and duty cycle).
  • 4 x adjustable duty cycle 0 to 100% in 255 steps and frequency range from 8 Hz to 5 kHz
  • 4 x adjustable duty cycle 0 to 100% in 20 steps and frequency range from 1 Hz to 100 Hz
