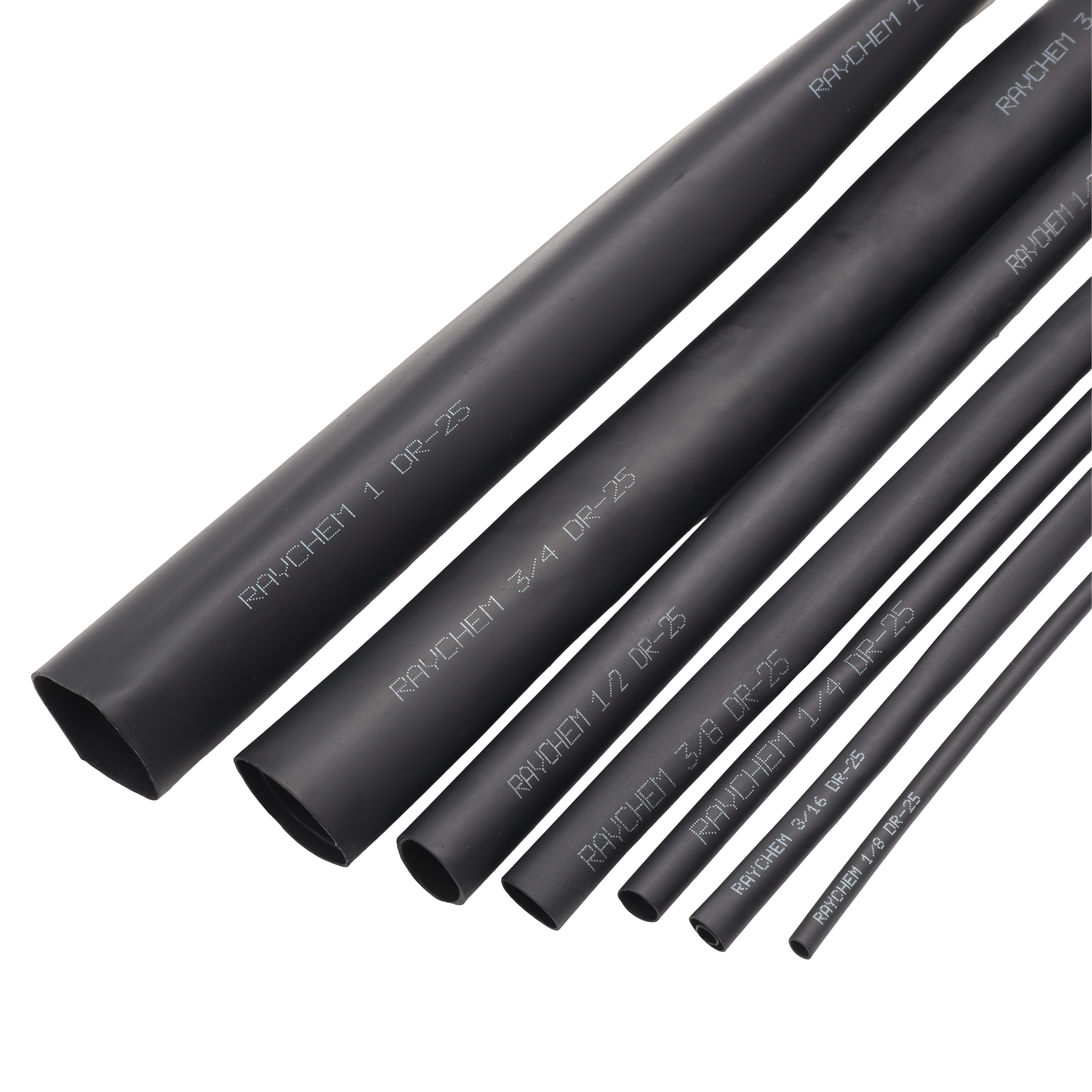

Raychem DR25 Heat shrink,

Specially formulated for optimum high-temperature fluid resistance, and long term heat resistance. Resistant to aviation and diesel fuels, hydraulic fluids and lubricating oils.

2:1 shrink ratio
Flame retardant
Long-term fluid and heat resistance
Heavy-wall, flexible harnessing tubing
Reliable protection against abrasion and mechanical damage
Compliant to AMS-DTL-23053/16

Minimum full recovery temperature: 175oC

Operating temperature  -75oC – 150oC

Price per meter

Not suitable for use inside fuel cells, use RW-200-E



DR25 Size guide

Unrecovered internal diameter

Recovered internal diameter

3.2mm or 1/8

1.6mm

4.8mm or 3/16

2.4mm

6.4mm or 1/4

3.2mm

9.5mm or 3/8

4.8mm

12mm or 1/2

6.4mm

19mm or 3/4

9.5mm

25mm or 1 Inch

12.7mm
