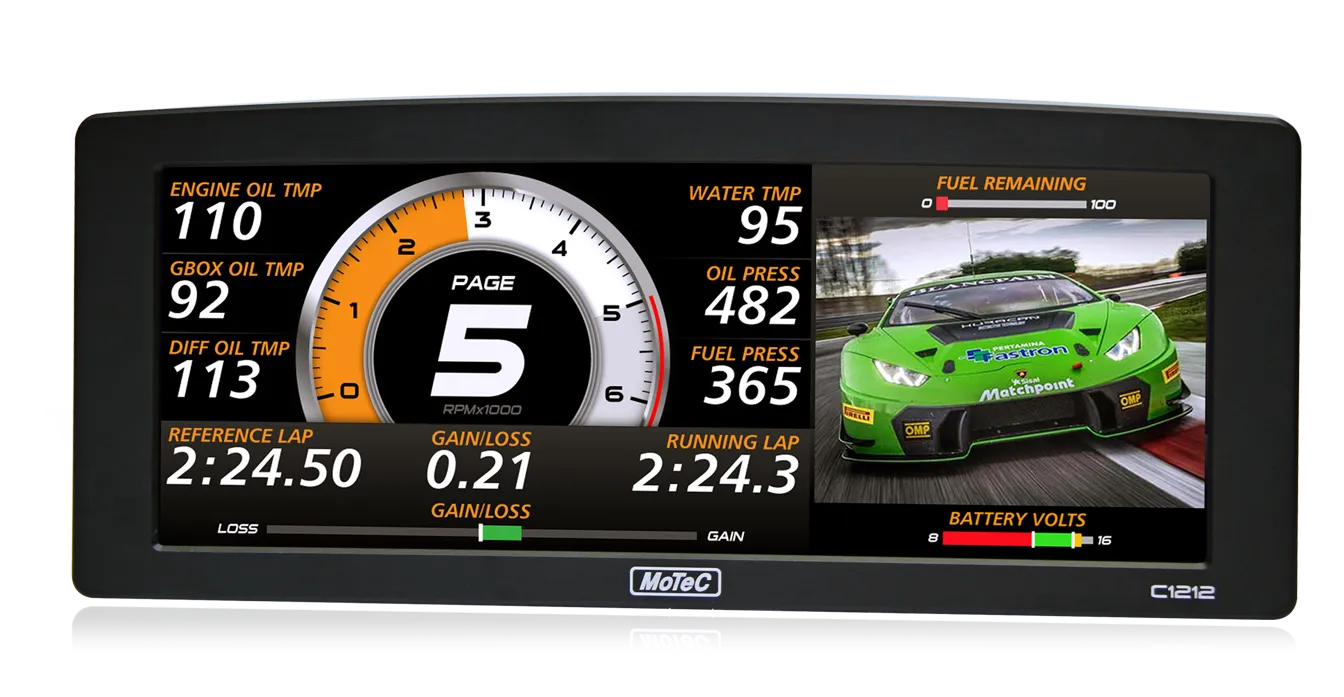

MoTeC C1212 12 inch Colour Display Logger

The C1212 comes standard as a combined 12" full colour display and powerful control device with outstanding readability in direct sunlight. With the addition of the Data Logging upgrade it becomes a fully programmable data logger with 120 MB memory. Optional USB Logging provides additional data capacity and flexibility.

Numerous supplied display layouts offer fixed graphics with a live video window and configurable channels and labels, while the optional Display Creator software provides the tools for full screen customisation.

The C1212 acquires data from other devices, such as an ECU, and can display data channels, warning alarms, lap times, fuel calculations, minimum corner speeds, maximum straight speeds and more.

Display

• Screen: Colour TFT LCD, anti-reflective
• Resolution: 1280 x 480 resolution, anti-aliased graphics
• Selectable fixed layouts include a dedicated live video window on the right side of the screen. Note:Video window is blank if no camera is connected; this area cannot be used for other channels in a fixed layout.
• Layouts: selectable fixed layouts (user programmable layouts via optional Display Creatorsoftware)
• 48 user-defined, scrollable message lines with programmable overrides
• 3 programmable modes with customisable labels

Inputs

• 2 x Digital inputs
• 3 x Speed inputs
• 1 x Composite video input

Additional Upgrades

• Internal 120mb data logging
  I2Data Analysis software included, 500 samples per second.


• Additional Input and output
  ▪  6 x Analogue voltage inputs
  – 4 x 0 to 5.46 V
     – 2 x 0 to 15.0 V,
  ▪ 2 Analogue temperature inputs
      – 2 x 0 to 15.0 V
  ▪ 4 x low side outputs PWM or switched operation



• Display Creator
  allows for full customisation of the screen layout, including live video.
