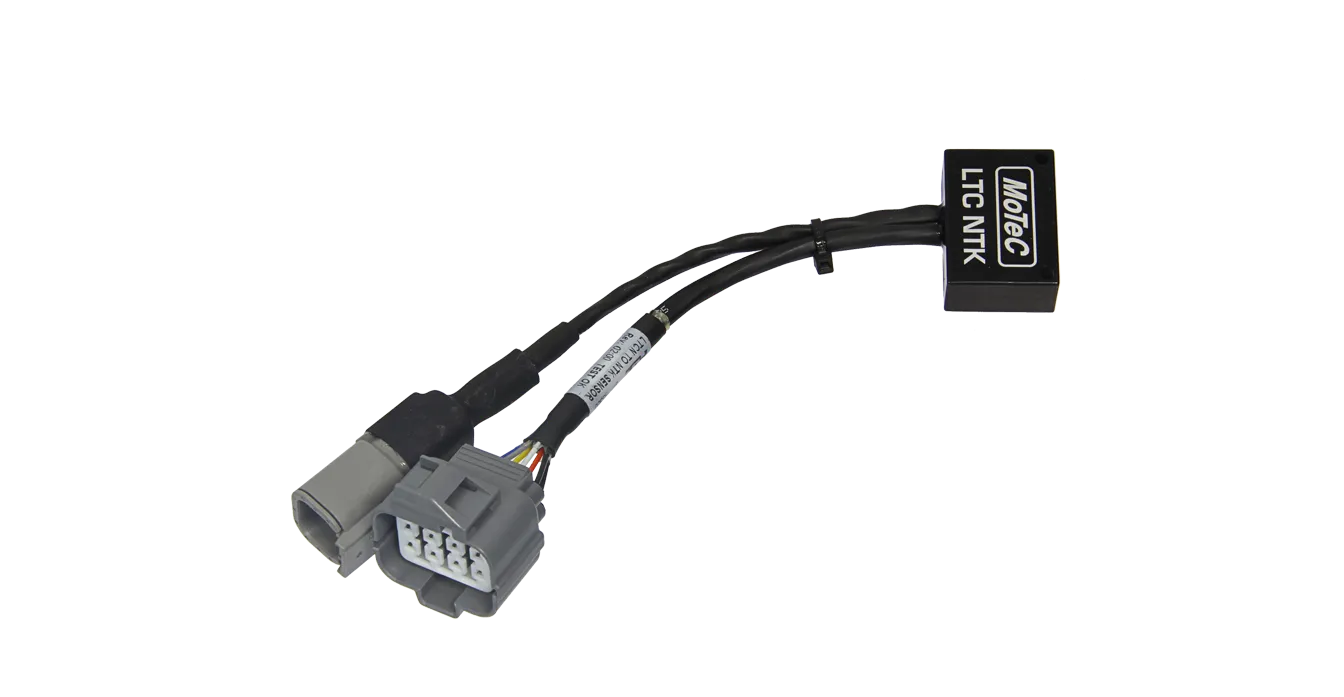

MoTeC LTC NTK Lambda to Can Module

MoTeC's LTC NTK (Lambda to CAN module) monitors, controls and diagnoses an NTK Lambda sensor, transmitting Lambda readings on a CAN bus.

When using multiple LTC NTKs, up to 32 Lambda sensors can be configured on a single CAN bus for simultaneous monitoring by an ECU or logging device.

• Provides accurate Lambda measurement, even when exhaust gas temperature is changing rapidly (heating or cooling).
• Calibrated by the user for a particular sensor using the initial sensor factory calibration, the free air calibration or the referenced gas calibration.
• Pre-configured to suit a single unit installation. If necessary, the configuration can be adjusted; see the Configuration section for more details.
• Units marked with a 2 or higher under the barcode are able to transmit extended Lambda values (Rich Lambda).

Inputs/Outputs

• 1 x NTK Lambda sensor (MoTeC #57007)
• Power supply voltage 11 V - 16 V
• Power supply current 110 mA typical plus the sensor heater current. Heater current is typically 0.5 A - 1 A and up to 2 A on startup.

Communications

• 1 x CAN — using LTC Manager, configurable to:

125 Kbps, 250 Kbps, 500 Kbps or 1 Mbps

Physical

• Dimensions: 38 x 26 x 14 mm, excluding wiring looms and connectors
• Weight: 62 g
• 1 x 4 pin male DTM connector (power/CAN)
• 1 x mating connector for NTK Lambda sensor
• Maximum ambient temperature: 100 °C
