Striped Tefzel 20 AWG
Striped Tefzel 20 AWG

Proloom Motorsport

Striped Tefzel 20 AWG

$1.10 Ex. GST $1.70 Ex. GST
Save 35%
SKU: M22759/32-20-93
Stripe Colour:Orange
In stock
Quantity:
Pickup available at Proloom Motorsport Usually ready in 24 hours

Striped Tefzel 20 AWG

Orange

Proloom Motorsport

Pickup available, usually ready in 24 hours

51 Centre Way
15
Croydon South VIC 3136
Australia

+61499747677

Striped milspec M22759/32  Tefzel (ETFE) insulated wire.

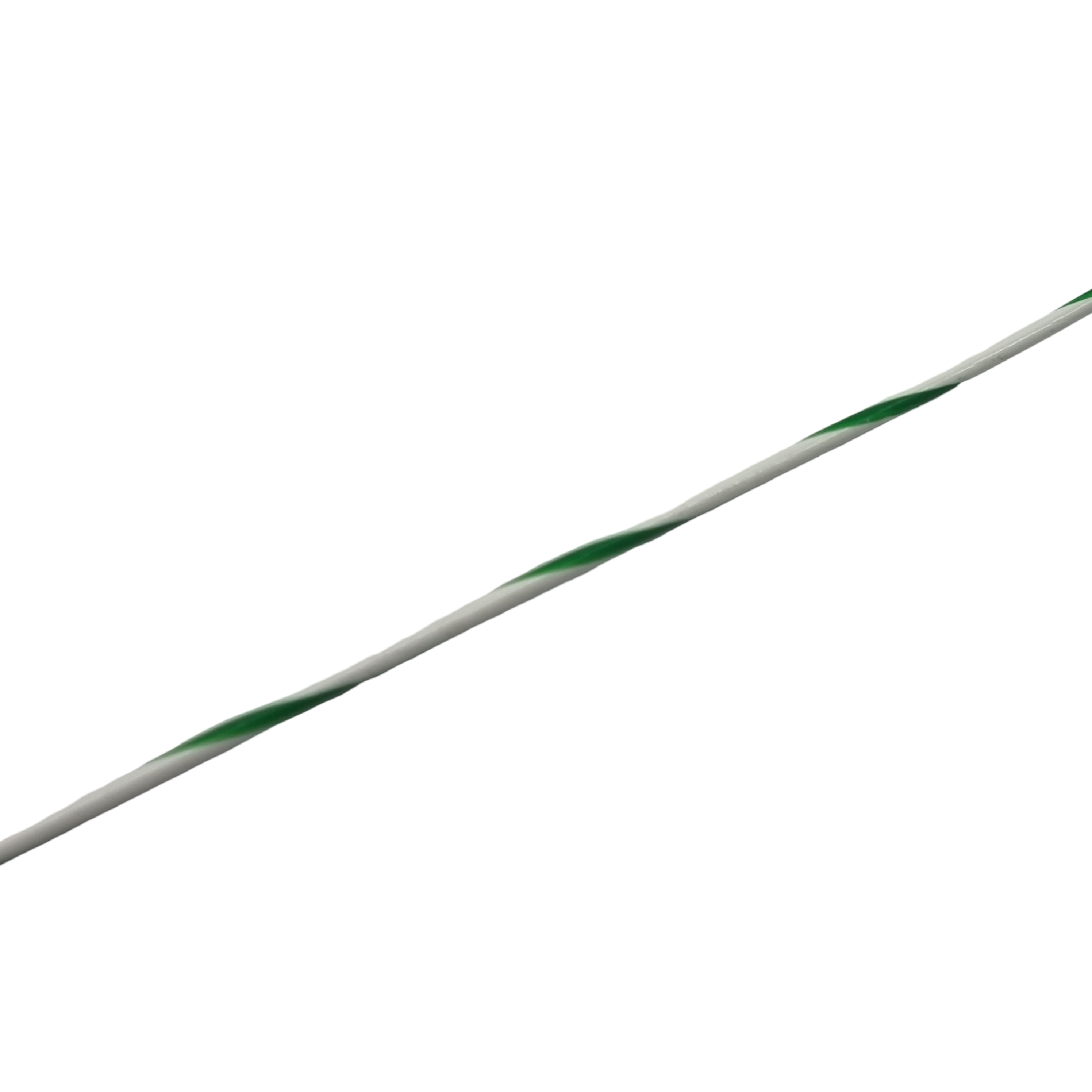

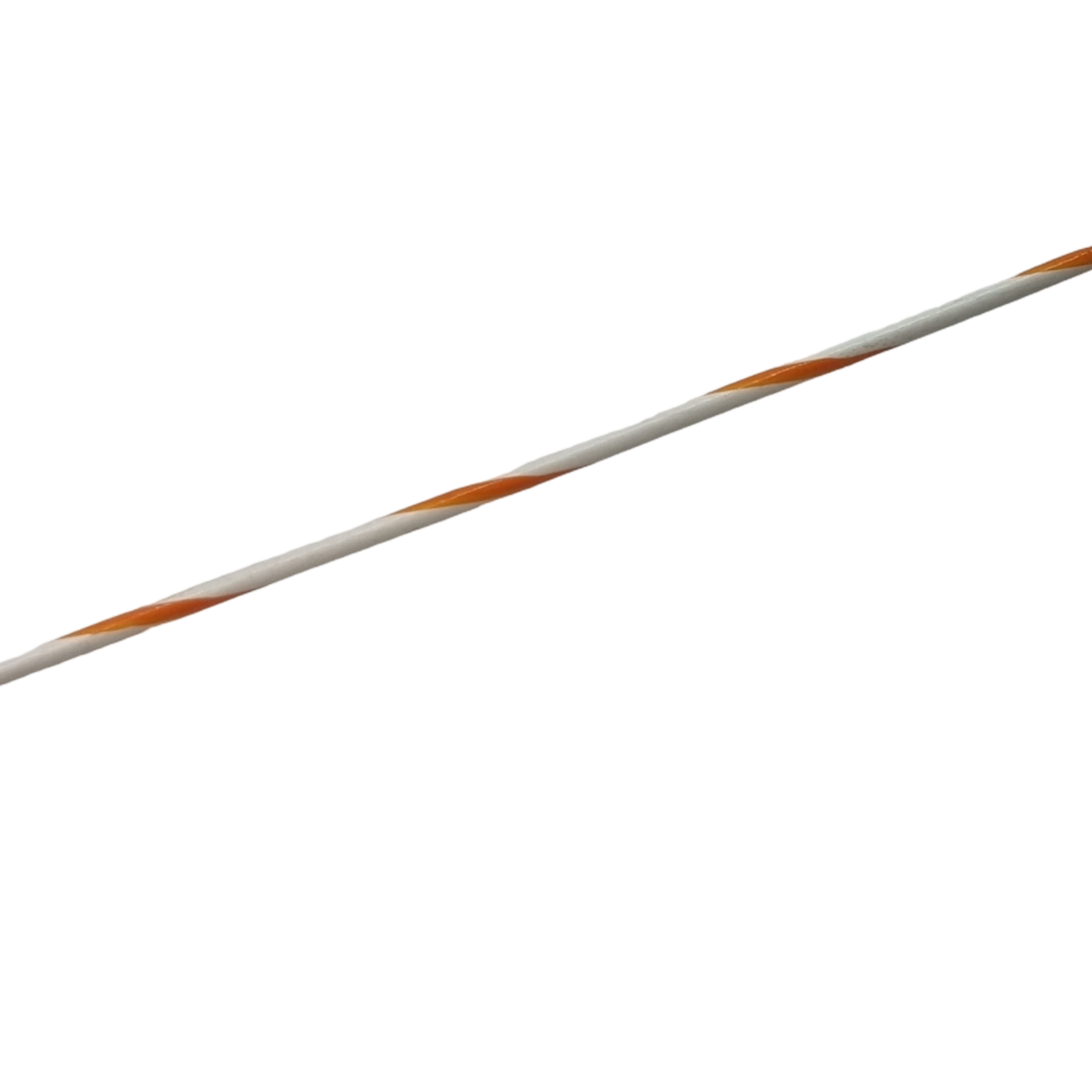

White jacket with green or orange stripe.

Limited Stock, sold by the meter.

Tefzel wire offers a small diameter conductor with enhanced mechanical toughness and resistant to harsh chemicals such as fuels, oils and other automotive fluids.

Rated to 8A @ 60 Degrees C,  6A @ 100 Degrees C
Maximum temperature 150 degrees C
Conductor Stranding:  19/32
Tin plated copper conductor.
Number of strands: 19
Nominal Diameter: 1.27mm
Weight: 6.40 Grams per meter



Wire size chart.

Wire Size Amperage rating @60C Amperage rating @100 Recommended Application
24 AWG 4.5 Amps 4 Amps Sensors, communication
22 AWG 6 Amps 5 Amps Sensors, relay triggers, communication, low current switching.
20 AWG 8 Amps 6 Amps Sensors, camshaft actuators, injector power wire and other low current devices,
18 AWG 11 Amps  9 Amps Low pressure pumps, coil power wire, small lights
16 AWG 15 Amps 12 Amps Solenoids, actuators, high current lighting,
14 AWG 22 Amps 18 Amps Fuel pump, Radiator Fan, Wiper motor or other high current devices.
