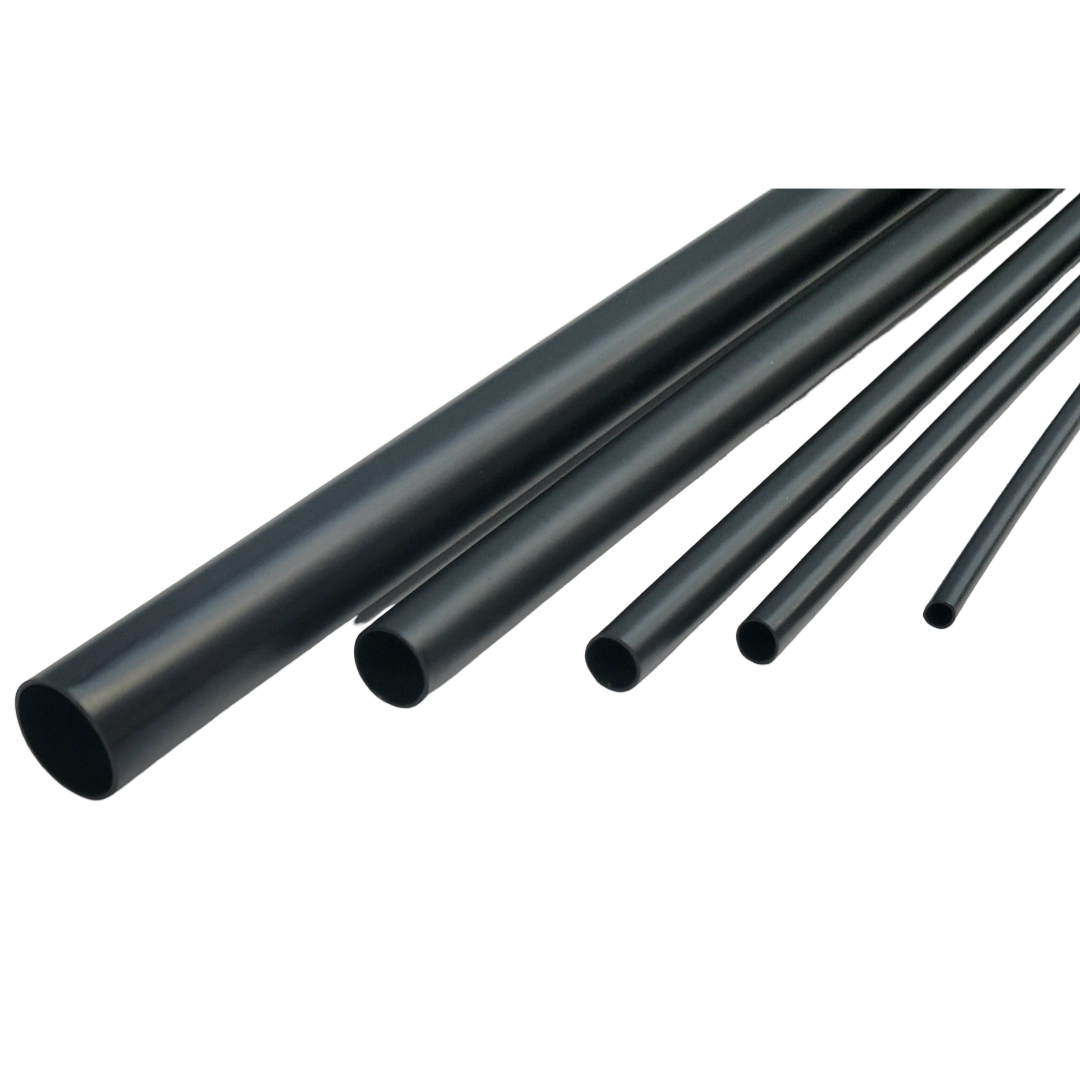

W5DL Glue Lined Heatshrink

SUMITUBE W5DL is a semi-rigid, dual wall, nonflame retarded polyolefin heat-shrinkable tubing.
Upon the application of heat the inner liner melts and flows to encapsulate components or splices contained within.

Excellent substitute for Raychem SCL, it meets the same AMS-DTL-23053/4 specifications.

SUMITUBE W5DL is recommended in applications for connections and wire harnesses
 where filling voids and interstices is of importance. W5DL provides good strain relief
 because it does not adhere to the substrate material; it can be removed for repair of components.

·        3:1 shrink ratio.
·        Operating temperature from –55°C up to +110°C.
·        Minimum shrink temperature: +125°C.
·        Minimum full recovery temperature: +140°C.
·        Flame retarded.
·        UL-recognized at 125°C, 600 V.
·        Meets the requirements of AS23053/4, Class 1.

Price is per 1.2m meter, cut into 300mm lengths for transport.

Data Sheet
