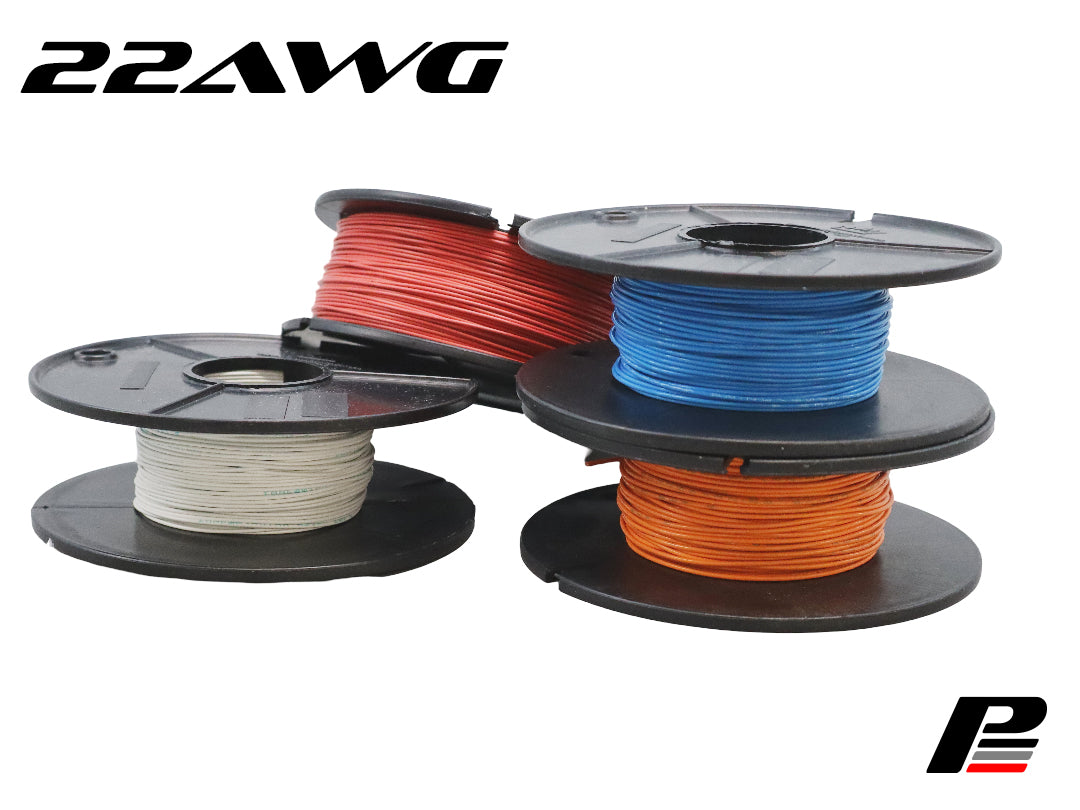

Tefzel 22 AWG

Proloom Motorsport

Tefzel 22 AWG

$15.00 Ex. GST
SKU: M22759/32-22-0-10M
Color:Black
Spool Length:10 Meters
In stock
Quantity:
Pickup available at Proloom Motorsport Usually ready in 24 hours

Tefzel 22 AWG

Black / 10 Meters

Proloom Motorsport

Pickup available, usually ready in 24 hours

51 Centre Way
15
Croydon South VIC 3136
Australia

+61499747677

Milspec M22759/32  Tefzel (ETFE) insulated wire.

Tefzel wire offers a small diameter conductor with enhanced mechanical toughness and resistant to harsh chemicals such as fuels, oils and other automotive fluids.

Rated to 6A @ 60 Degrees C,  5A @ 100 Degrees C
Maximum temperature 150 degrees C
Tin plated copper conductor.

Sold by the spool only, for all other enquires please contact us.

Quantity discounts

Spool Length Price Per Meter
10 & 20 Meters $1.50
50 Meter $1.40
100 Meter $1.35
200 Meter $1.30

Wire size chart.

Wire Size Amperage rating @60C Amperage rating @100 Recommended Application
24 AWG 4.5 Amps 4 Amps Sensors, communication
22 AWG 6 Amps 5 Amps Sensors, relay triggers, communication, low current switching.
20 AWG 8 Amps 6 Amps Sensors, camshaft actuators, injector power wire and other low current devices,
18 AWG 11 Amps  9 Amps Low pressure pumps, coil power wire, small lights
16 AWG 15 Amps 12 Amps Solenoids, actuators, high current lighting,
14 AWG 22 Amps 18 Amps Fuel pump, Radiator Fan, Wiper motor or other high current devices.
