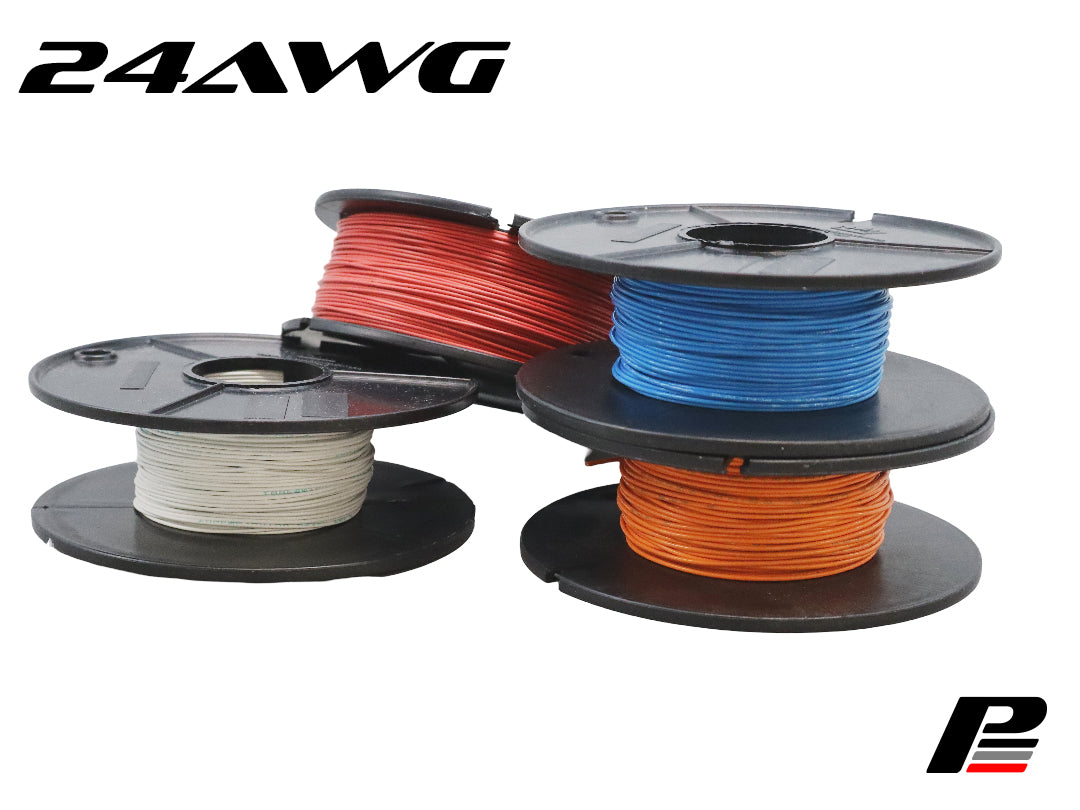

Tefzel 24 AWG

Milspec M22759/32 Tefzel (ETFE) insulated wire.

Tefzel wire offers a small diameter conductor with enhanced mechanical toughness and resistant to harsh chemicals such as fuels, oils and other automotive fluids.

Rated to 4.5A @ 60 Degrees C, 4A @ 100 Degrees C
Maximum temperature 150 degrees C
Conductor Stranding: 19/38
Tin plated copper conductor.
Number of strands: 19
Nominal Diameter: 0.94mm
Weight: 2.98 Grams per meter

Sold by the spool only, for all other enquires please contact us.

Quantity discounts

Spool Length	Price Per Meter
10 & 20 Meters	$1.00
50 Meter	$0.93
100 Meter	$0.90
200 Meter	$0.88

Wire size chart.

Wire Size	Amperage rating @60C	Amperage rating @100	Recommended Application
24 AWG	4.5 Amps	4 Amps	Sensors, communication
22 AWG	6 Amps	5 Amps	Sensors, relay triggers, communication, low current switching.
20 AWG	8 Amps	6 Amps	Sensors, camshaft actuators, injector power wire and other low current devices,
18 AWG	11 Amps	9 Amps	Low pressure pumps, coil power wire, small lights
16 AWG	15 Amps	12 Amps	Solenoids, actuators, high current lighting,
14 AWG	22 Amps	18 Amps	Fuel pump, Radiator Fan, Wiper motor or other high current devices.
