Yamaha R6 Superbike Data Logging Kit
This kit is designed to work directly with a MoTeC L120 Data Logger

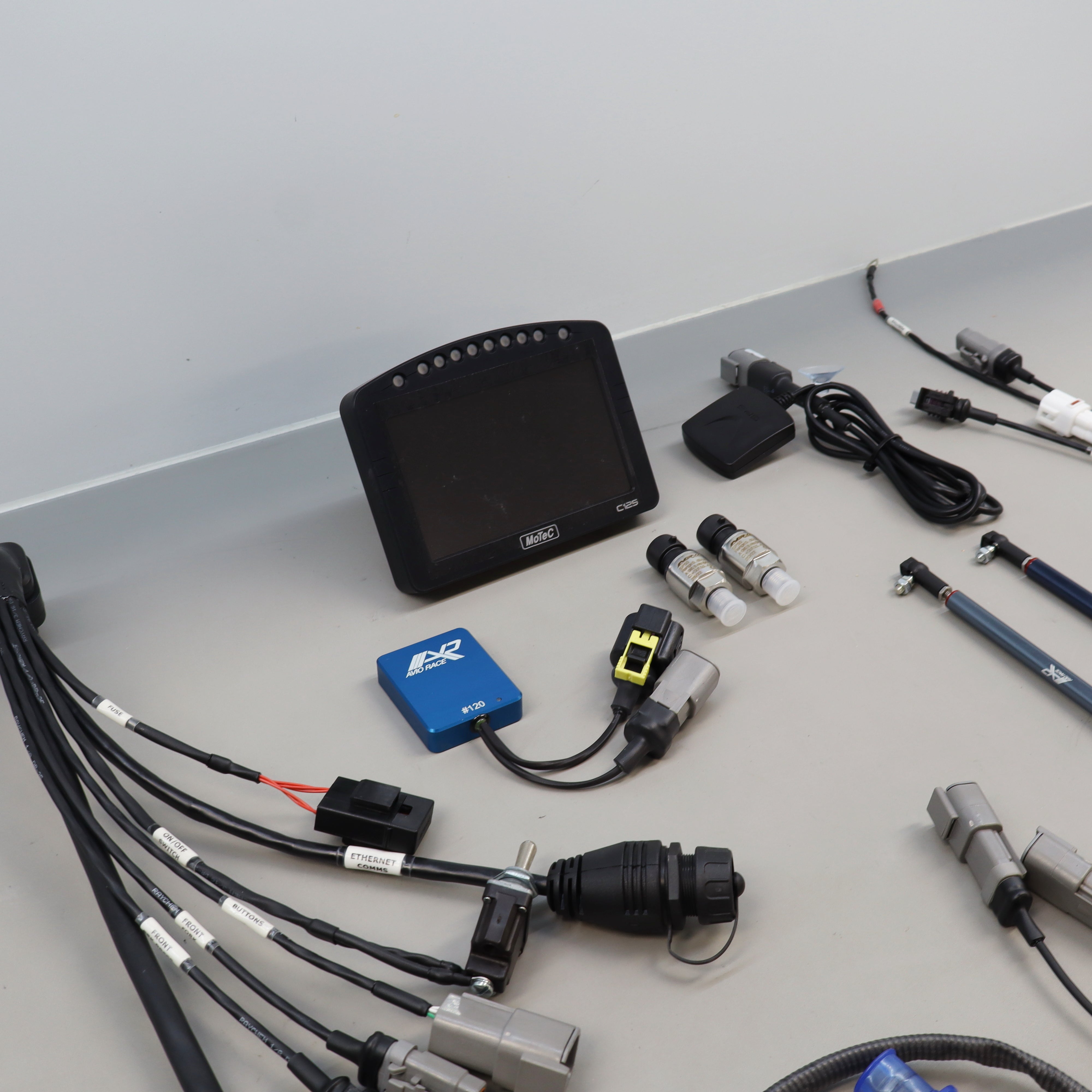

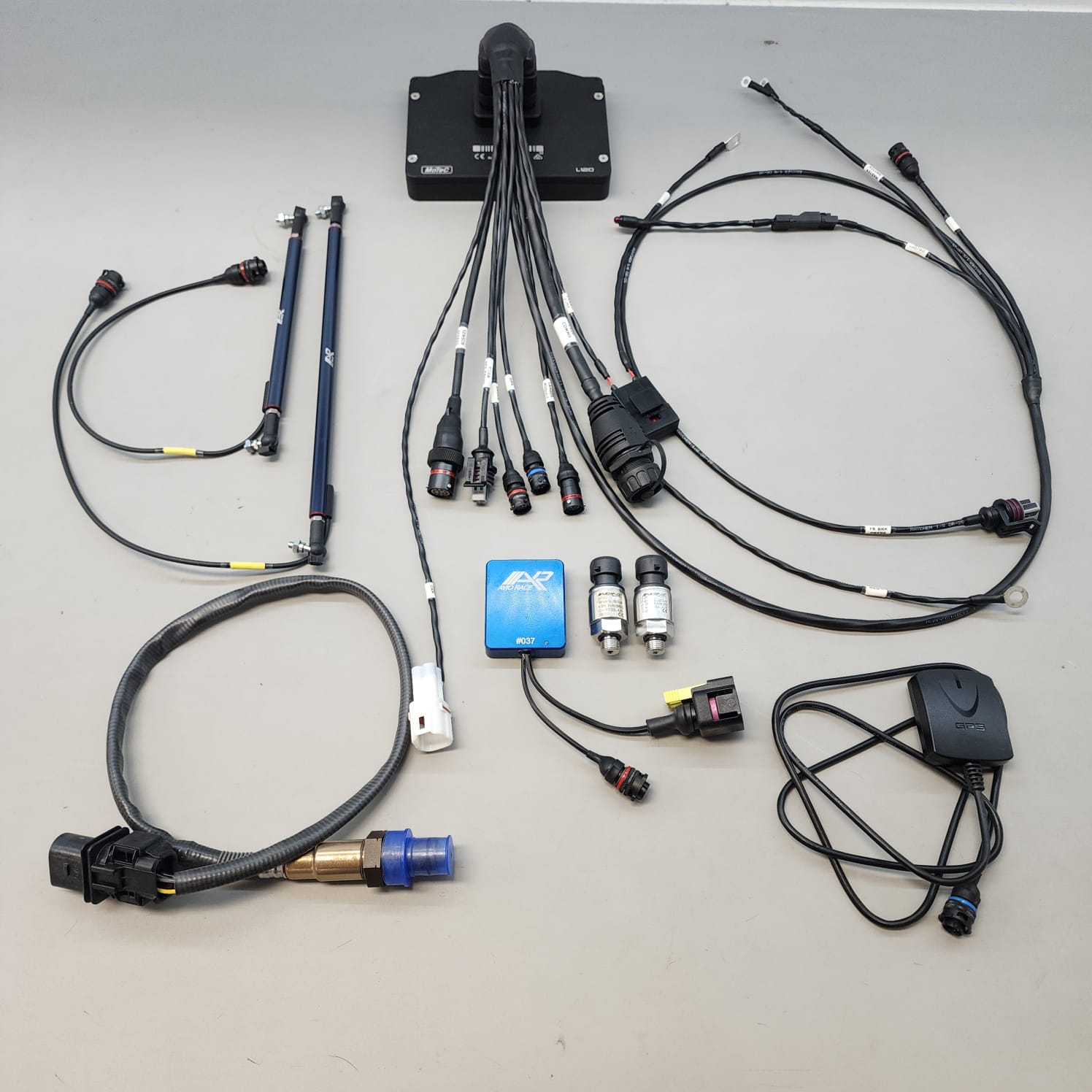

This kit Includes
- MoTeC L120 Data logger OR MoTeC C125 Dash.
- Factory Engine Data via YEC CAN
- MoTeC L10 GPS Sensor
- Bosch LSU4.9 Lambda Sensor

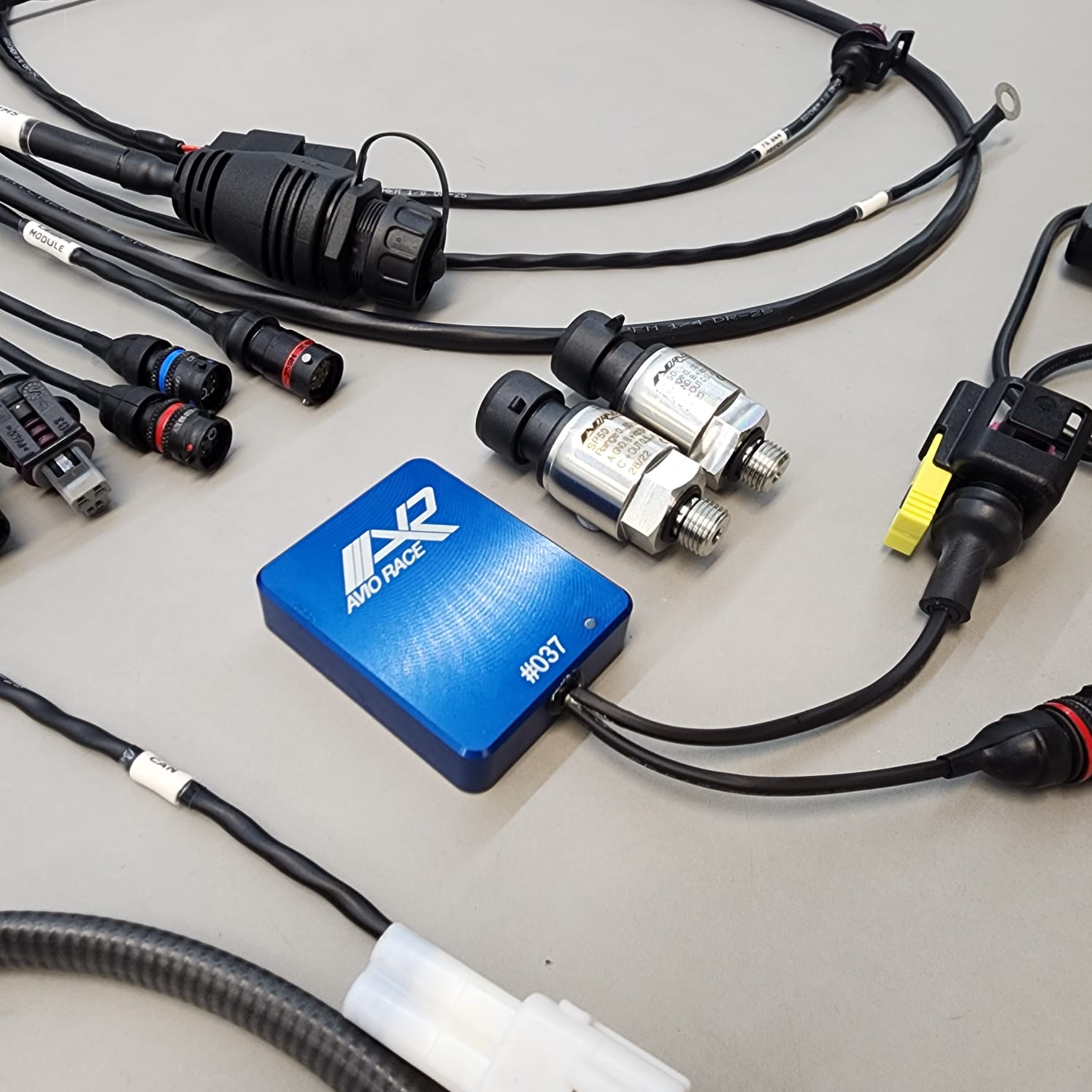

- Aviorace OR MoTeC Lambda to CAN controller

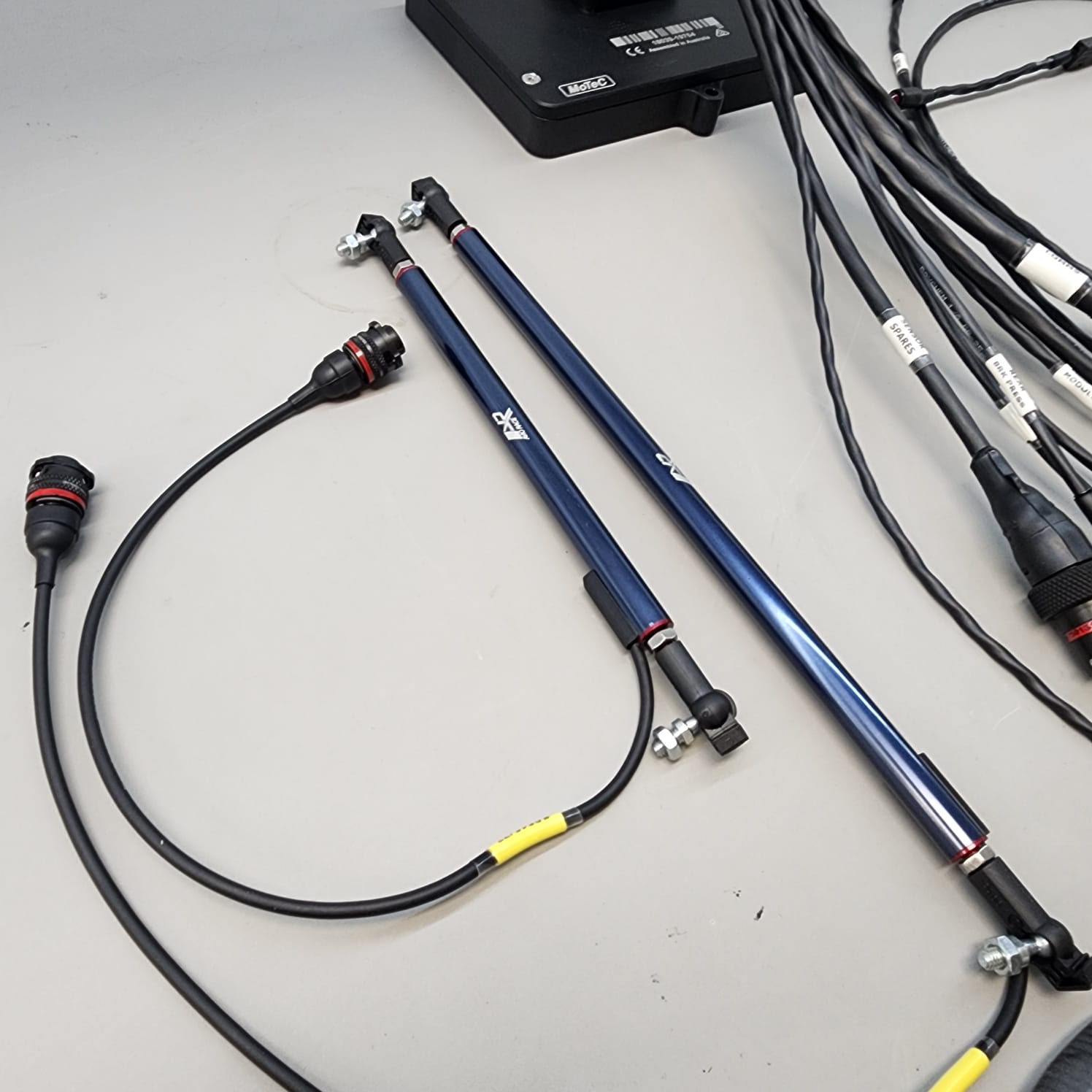

- Aviorace Front and rear suspension potentiometers
- Aviorace Front and rear brake pressure sensors

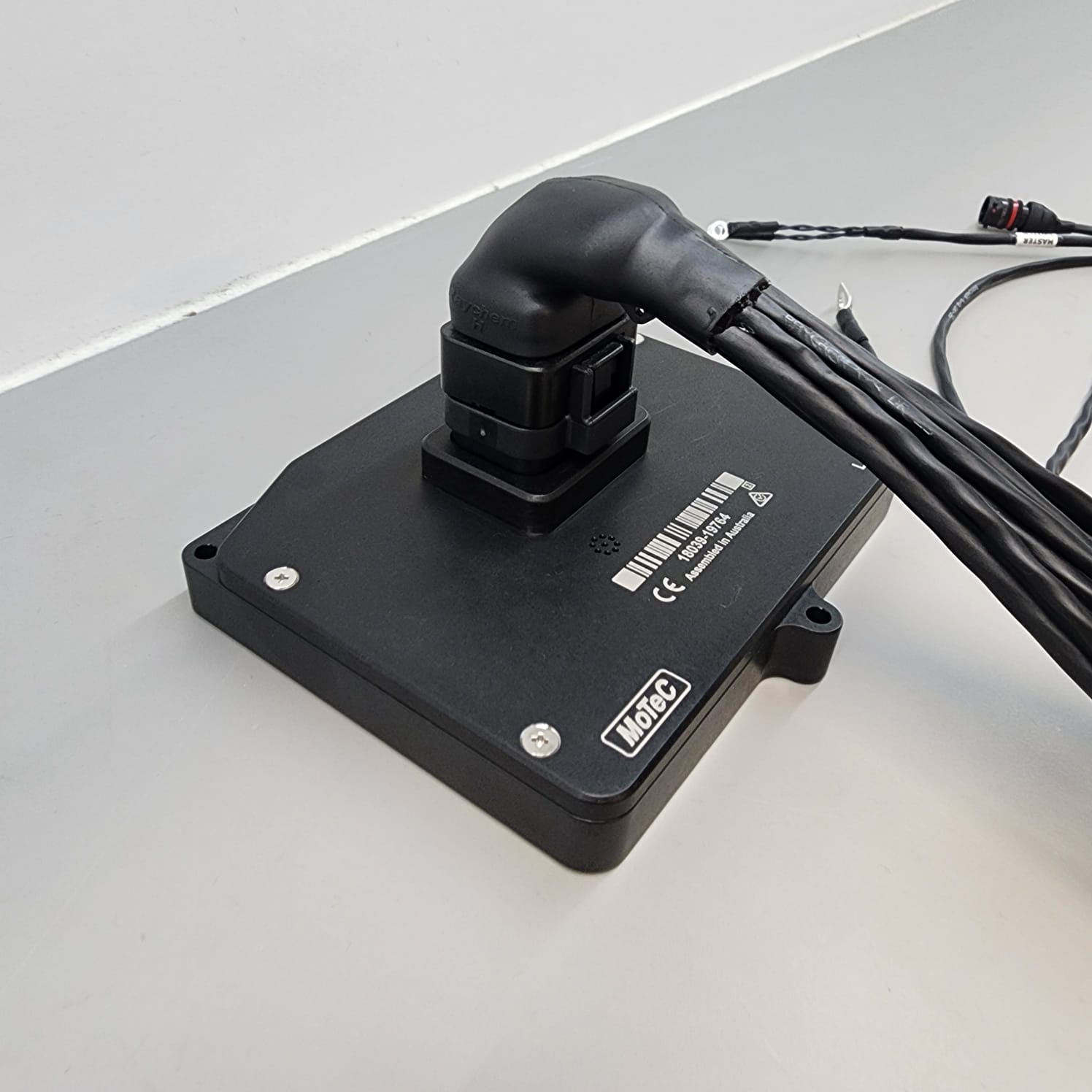

The MoTeC L120 has internal 120MB datalogging memory with up to 500 samples per second and has CAN connectivity for adding extra sensors such as tire temperature, tire pressure monitoring, brake temperature etc.
A MoTeC 5 inch display has all the logging capabilities of the L120 whilst displaying data channels, warning alarms, lap times, fuel calculations, minimum corner speeds, maximum straight speeds and more.

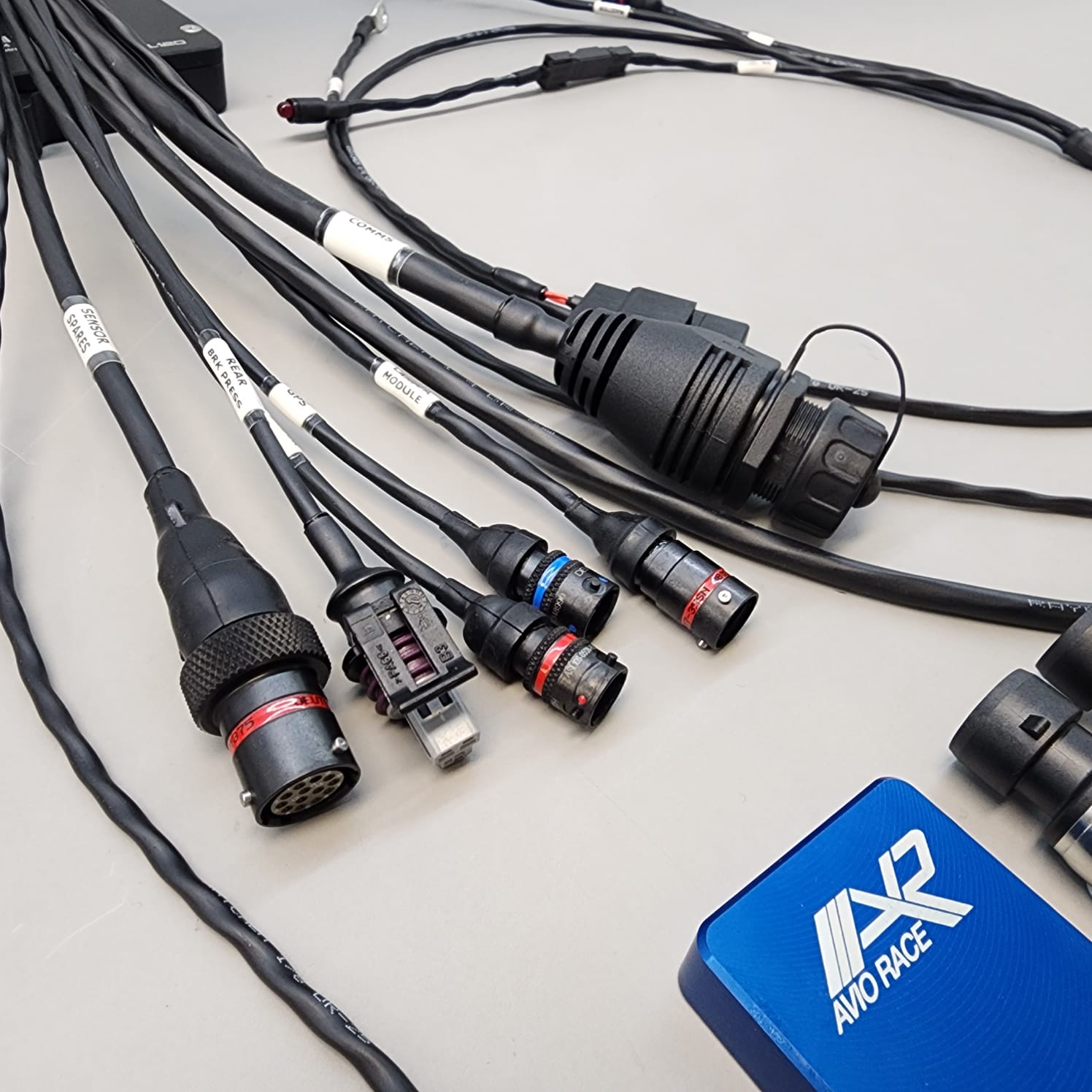

The wiring loom comes terminated with Deutsch Autosport connectors where possible, fully sealed from the elements with heat molded boots and DR25 Heat shrink.
The base configuration is pre-programmed to log wired in sensors and also pull CAN Data information from the YEC ECU for RPM, engine temps etc.
Wiring loom is built to order. please allow 2 working weeks for assembly.
Choose options
